vplot(faithful) |>
mark_histogram(x = waiting, bins = 25)
Most marks draw the data as given. A statistical mark computes something from the data first, then draws the result. vellumplot runs that transform as a stage of the compiler (see The compiler), so a histogram is a mark that bins the data as part of being drawn, rather than something you bin by hand.
Histograms and densities

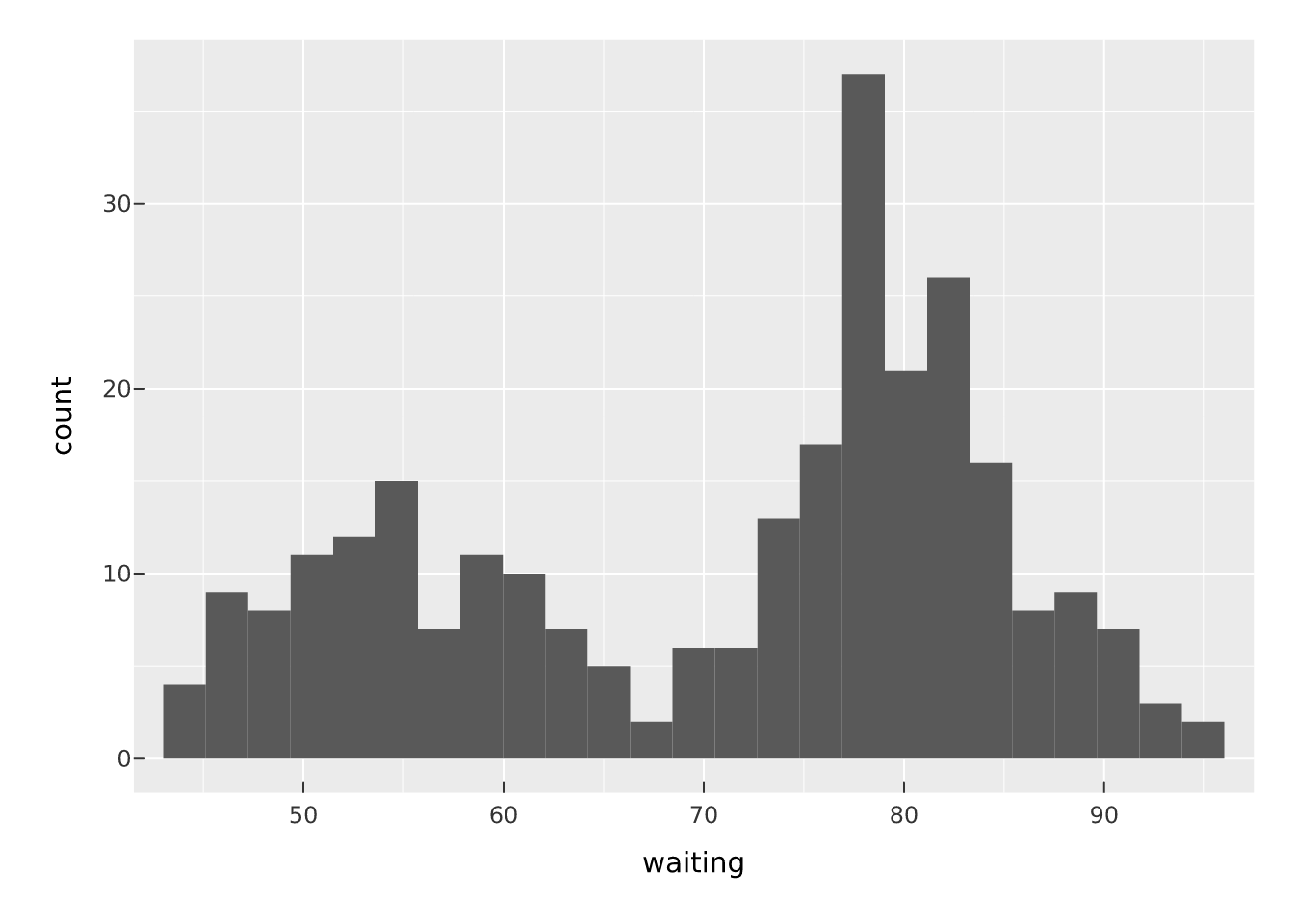

mark_histogram() bins a continuous x and draws the per-bin counts as bars. Control the resolution with bins.

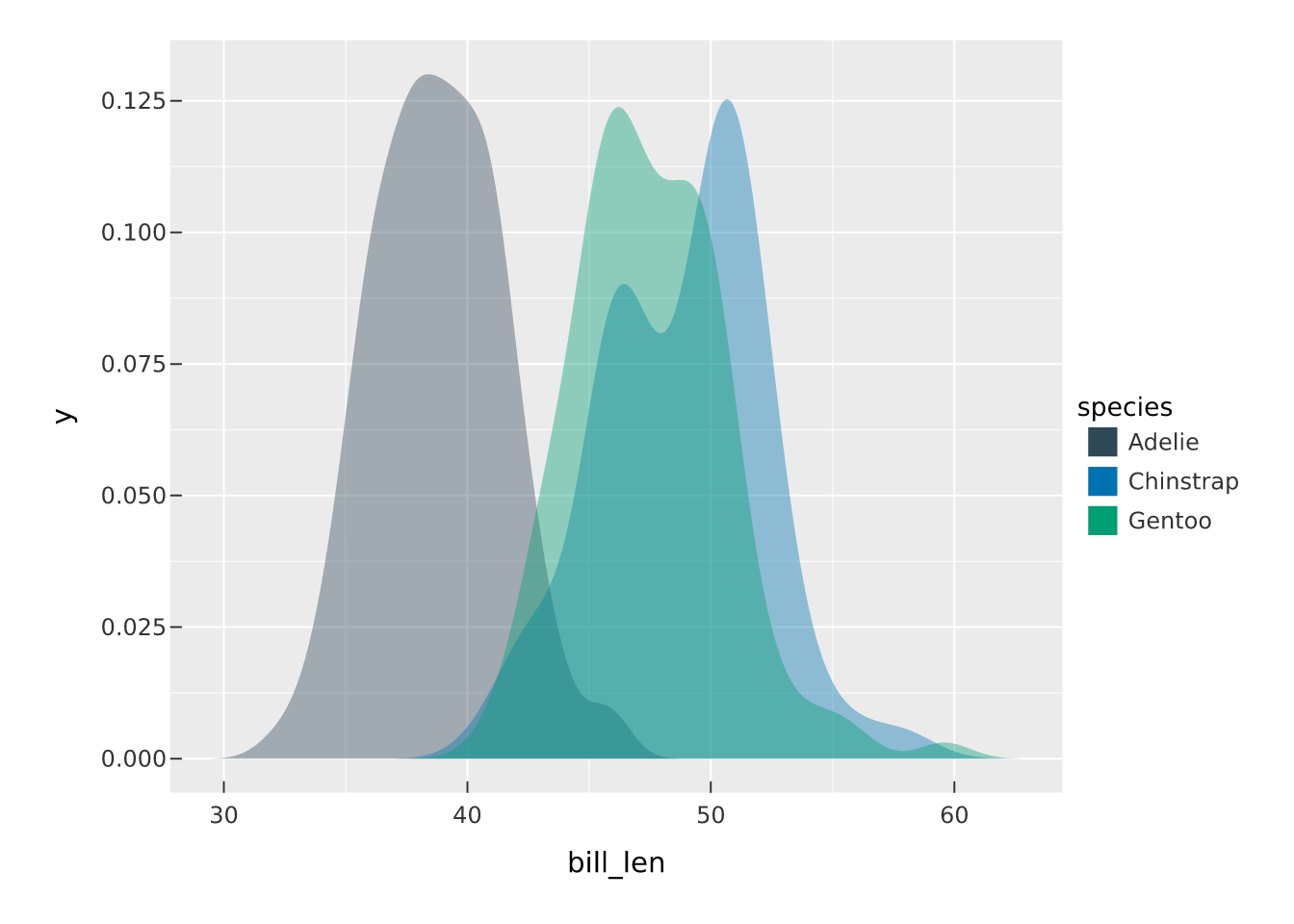

mark_density() draws a smooth kernel-density estimate of x as a filled curve; adjust scales the bandwidth. Densities are on a comparable vertical scale, so mapping fill to a group and overlaying works well.
vplot(penguins) |>
mark_density(x = bill_len, fill = species, alpha = 0.4)
Marginal distributions

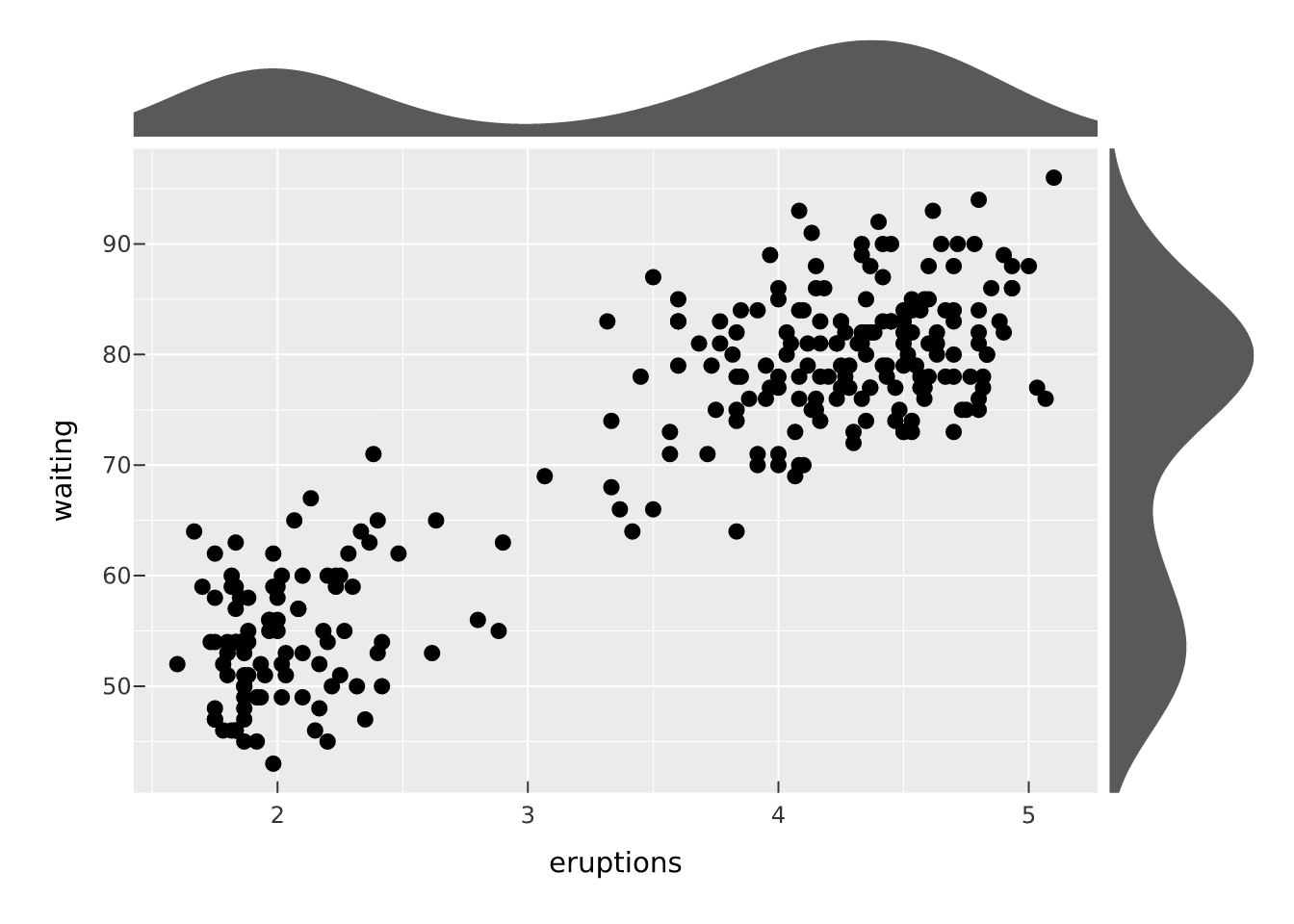

A scatter shows the joint distribution of two variables but hides each one on its own. add_marginal() puts them back: it draws a distribution of x along the top edge and of y along the right edge, each on the same scale as the panel so it lines up with the points. This is the vellumplot counterpart of ggExtra::ggMarginal().
vplot(faithful) |>
mark_point(x = eruptions, y = waiting) |>
add_marginal()

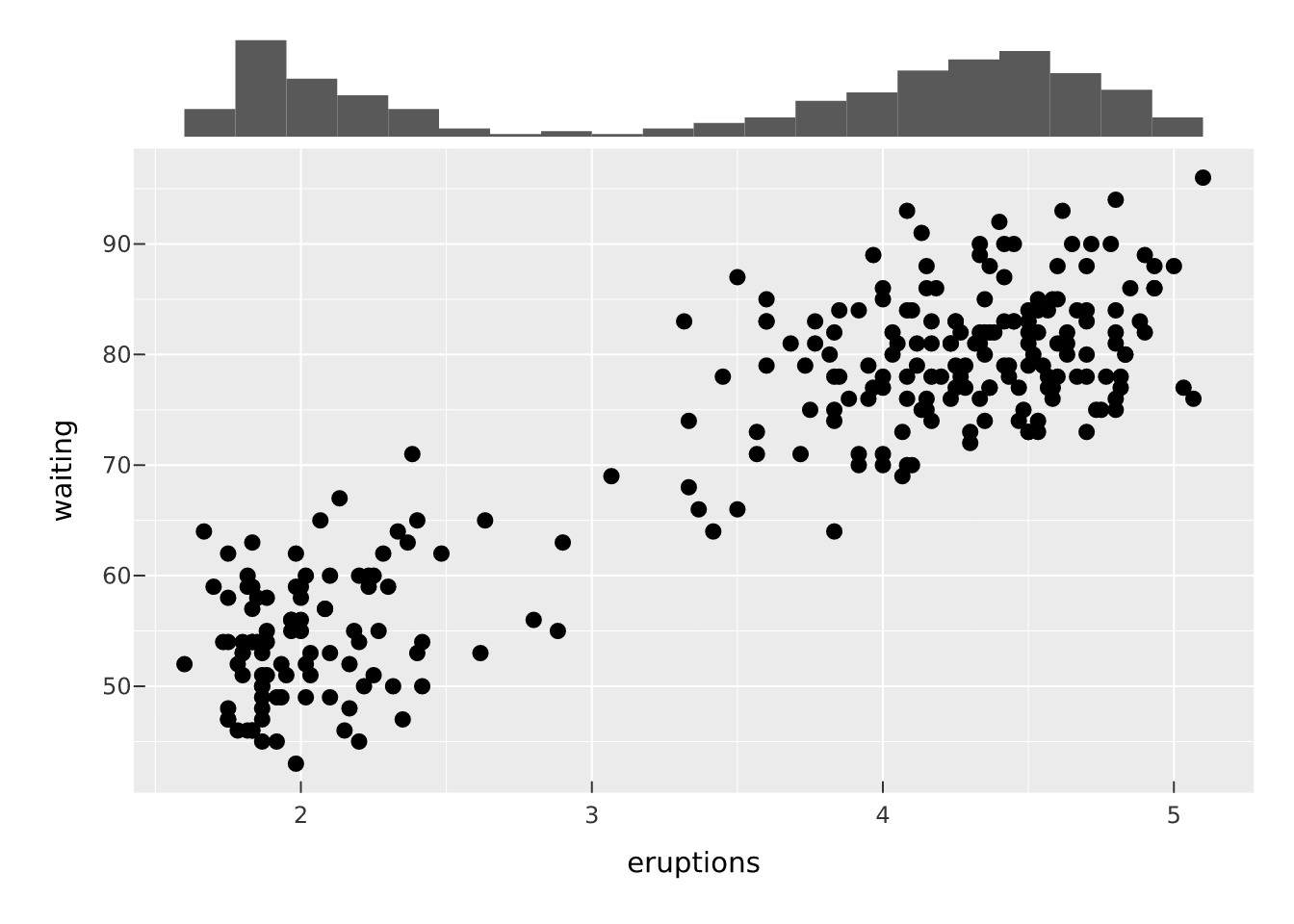

Unlike the other marks in this article, add_marginal() is a plot modifier rather than a layer, closer to facet_wrap() than to mark_density(). It takes no encoding of its own; it reads x and y from the first plain layer (here the mark_point()) and computes the margins from those. type = "histogram" bins the values instead of smoothing them, and sides picks which edges to draw.
vplot(faithful) |>
mark_point(x = eruptions, y = waiting) |>
add_marginal(type = "histogram", sides = "t", bins = 20)

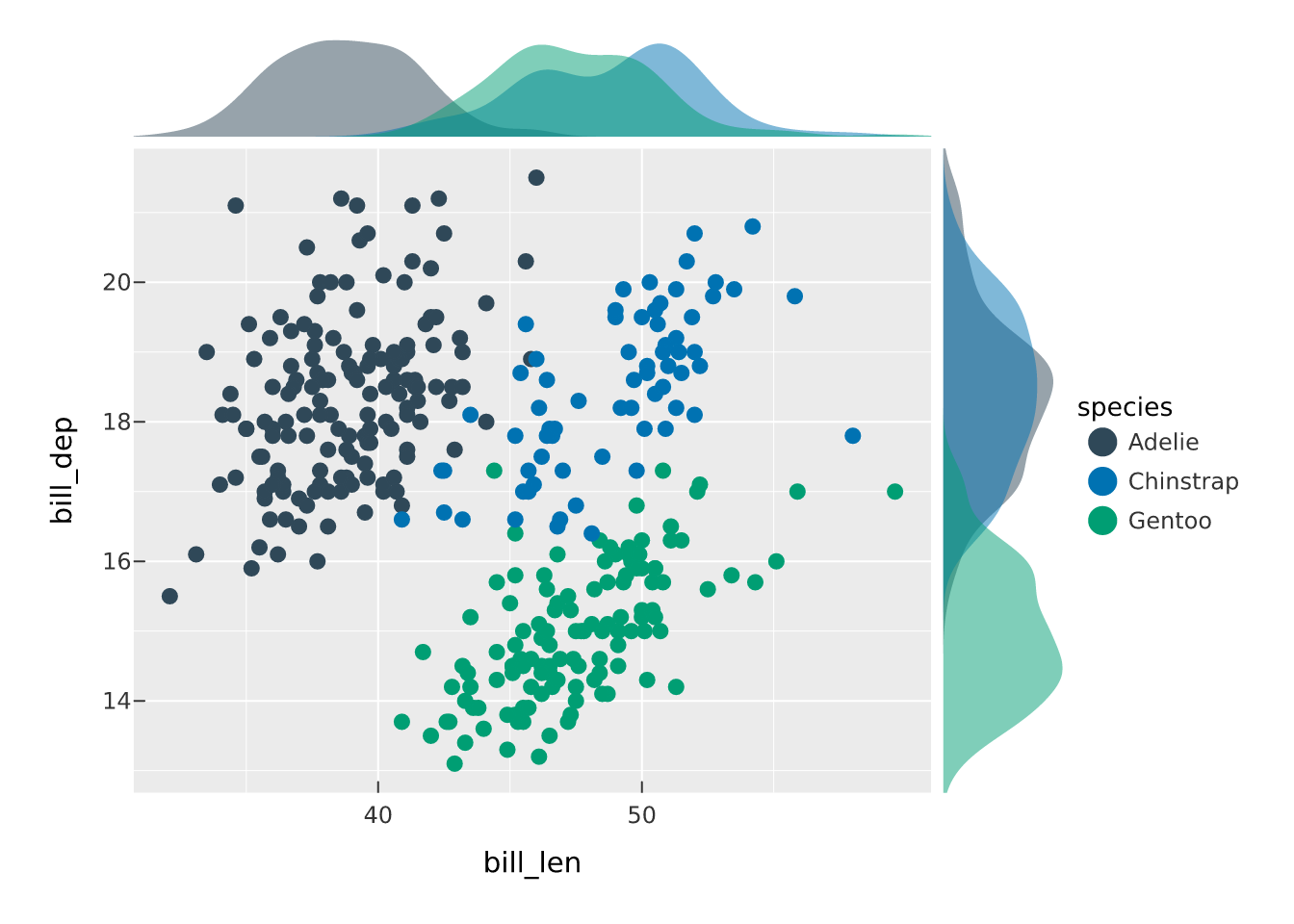

When the scatter maps a discrete color or fill, group = TRUE splits each margin the same way, so a per-group density sits above its points in the matching colour. The scatter’s legend already names the groups, so none is added.
vplot(penguins) |>
mark_point(x = bill_len, y = bill_dep, color = species) |>
add_marginal(group = TRUE)
Margins share the panel’s scales and reserve space around a single panel, so this version does not combine with facets, a flipped or polar coordinate system, or a fixed aspect ratio.
Per-group summaries

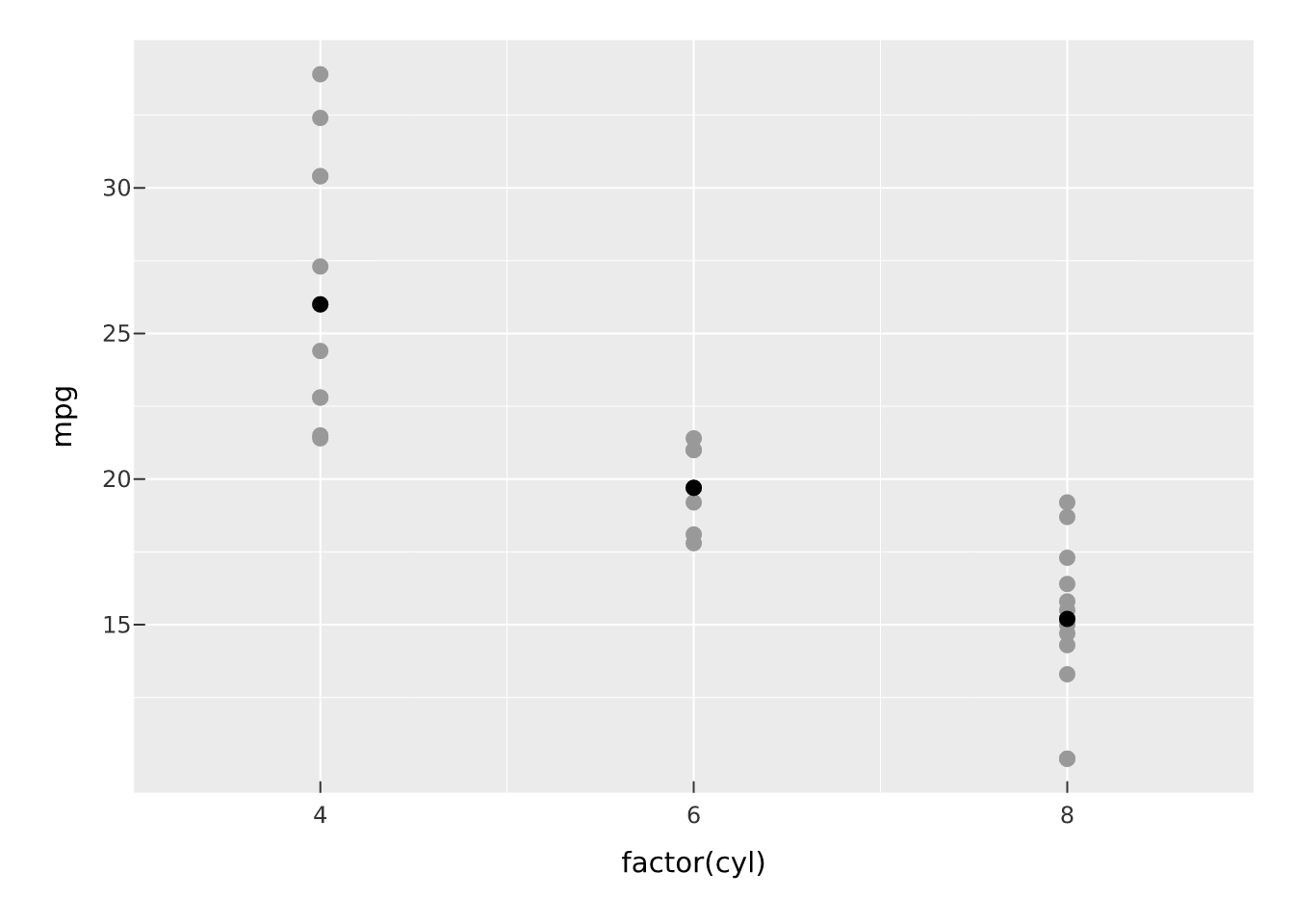

mark_summary() aggregates y within each x category using fun (the mean by default) and draws the result. It is the quick way to add group means over raw data.
vplot(mtcars) |>
mark_point(x = factor(cyl), y = mpg, color = "grey60") |>
mark_summary(x = factor(cyl), y = mpg, fun = median)
Smooths

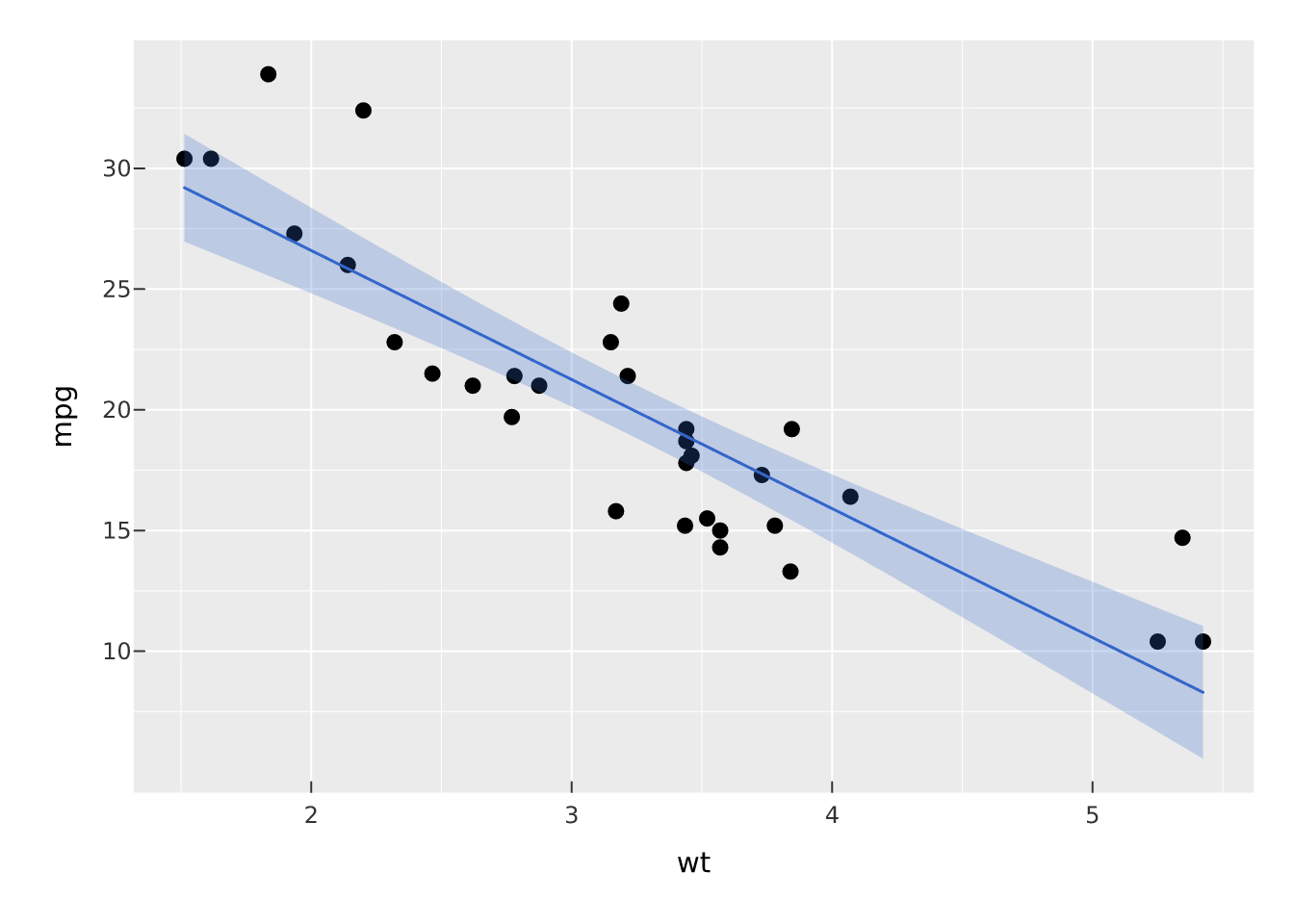

mark_smooth() fits a model of y on x (method = "lm") and draws the fitted line with a confidence ribbon when se = TRUE. It layers naturally over the raw points.
vplot(mtcars) |>
mark_point(x = wt, y = mpg) |>
mark_smooth(x = wt, y = mpg, se = TRUE, level = 0.95)
Distributions

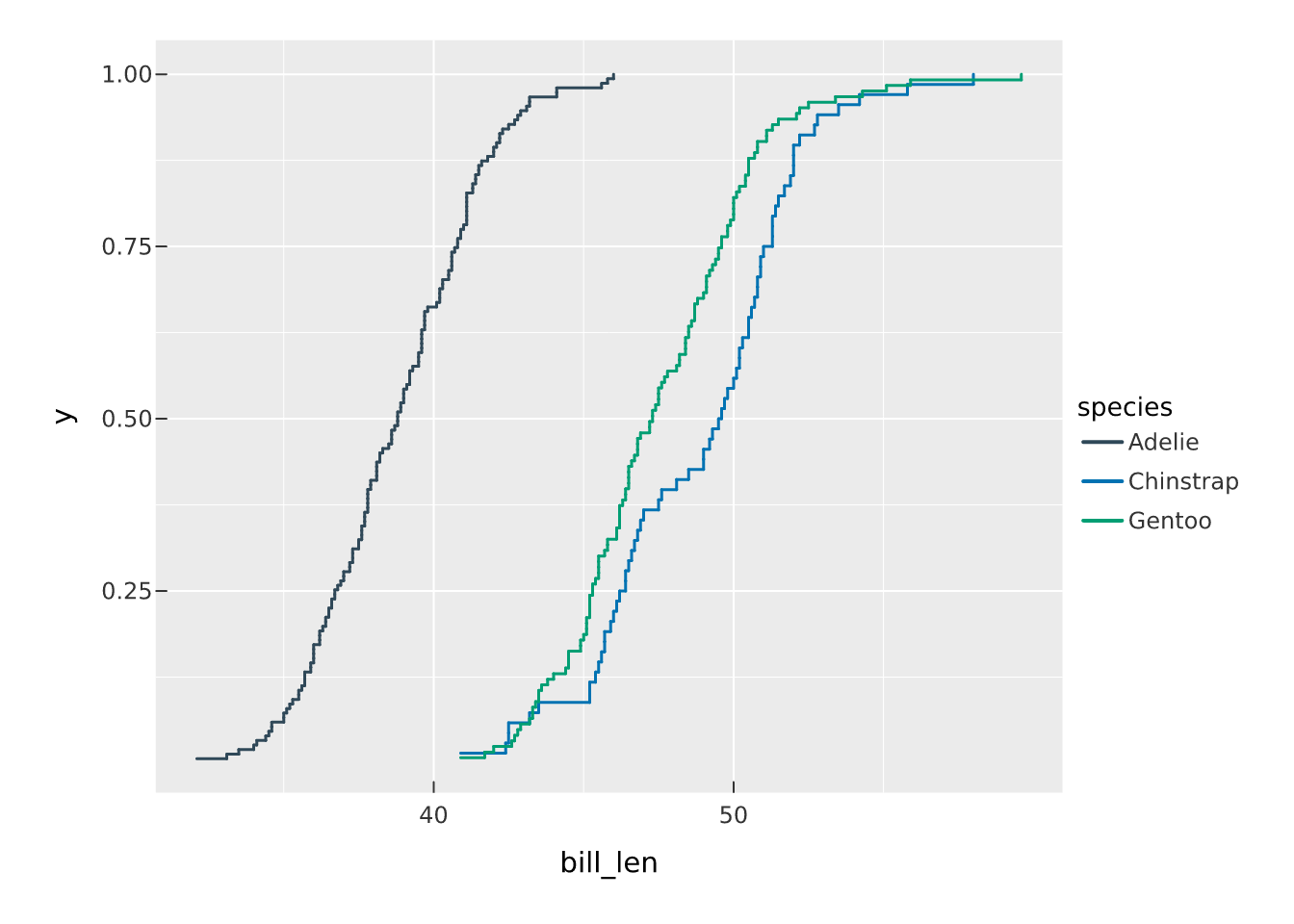

Several marks summarise how a single variable is distributed. mark_ecdf() draws the empirical cumulative distribution of x as a step, which is a scale-free way to compare groups without choosing a bandwidth.

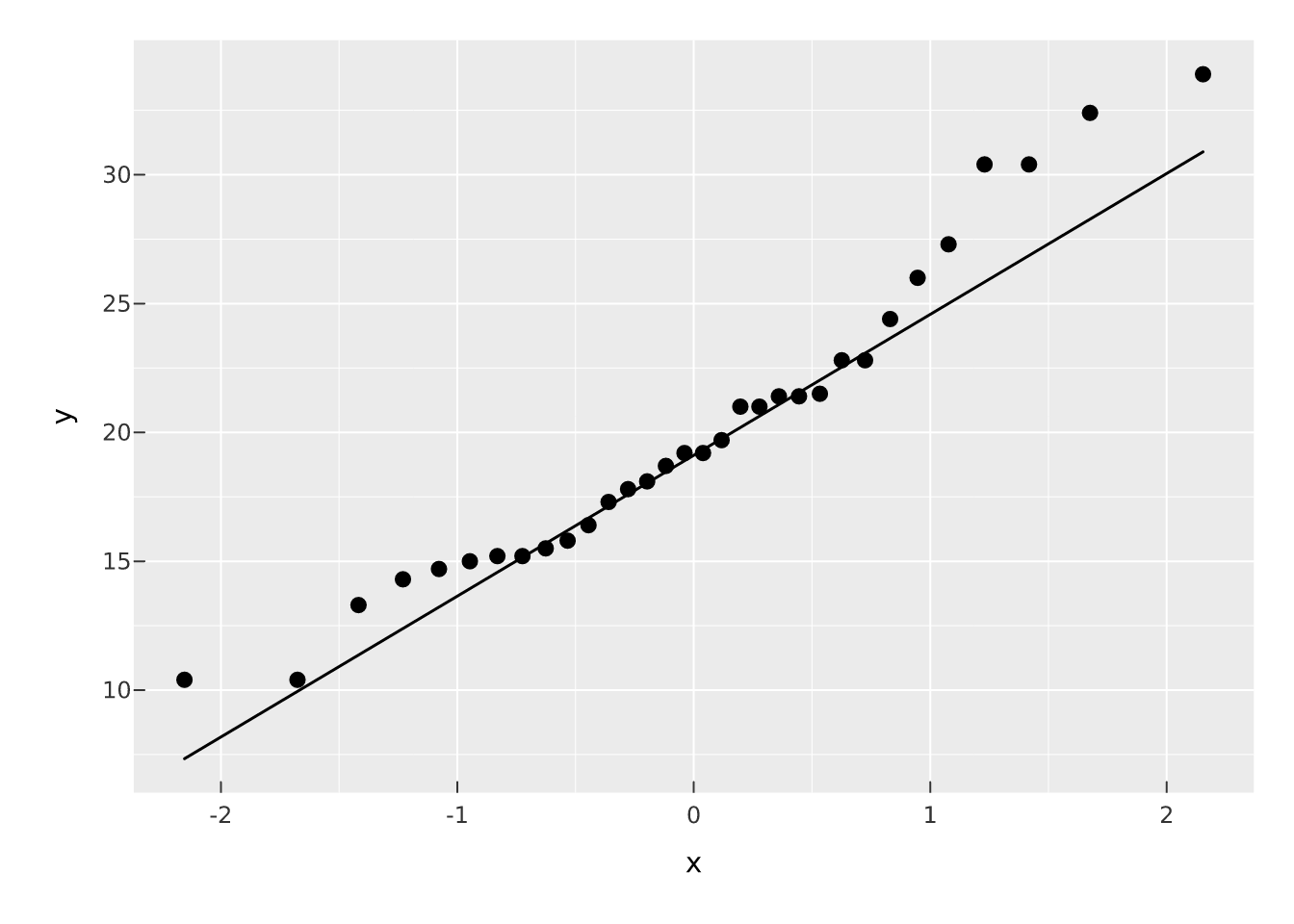

mark_qq() plots the sorted sample against the quantiles of a reference distribution (normal by default); mark_qq_line() adds the reference line through the quartiles. Points on the line mean the sample matches the reference.
vplot(mtcars) |>
mark_qq(sample = mpg) |>
mark_qq_line(sample = mpg)
mark_rug() adds marginal ticks at each observation, a compact companion to a scatter or density. sides picks the edges ("b", "l", "t", "r").
vplot(faithful) |>
mark_point(x = waiting, y = eruptions) |>
mark_rug()
Density shapes

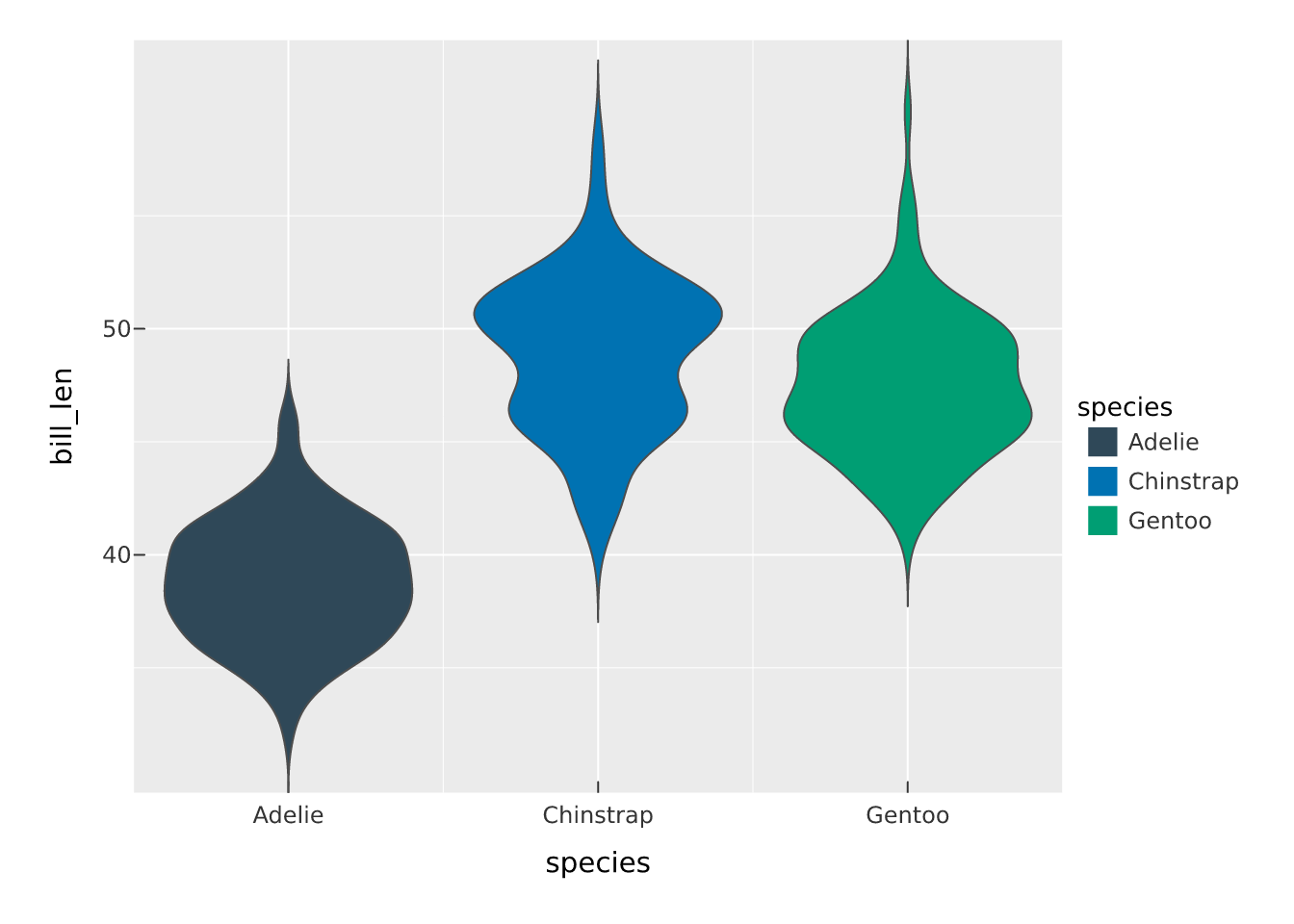

mark_violin() draws a mirrored kernel density of y for each categorical x, a boxplot’s silhouette that shows the full shape of each group.
vplot(penguins) |>
mark_violin(x = species, y = bill_len, fill = species)

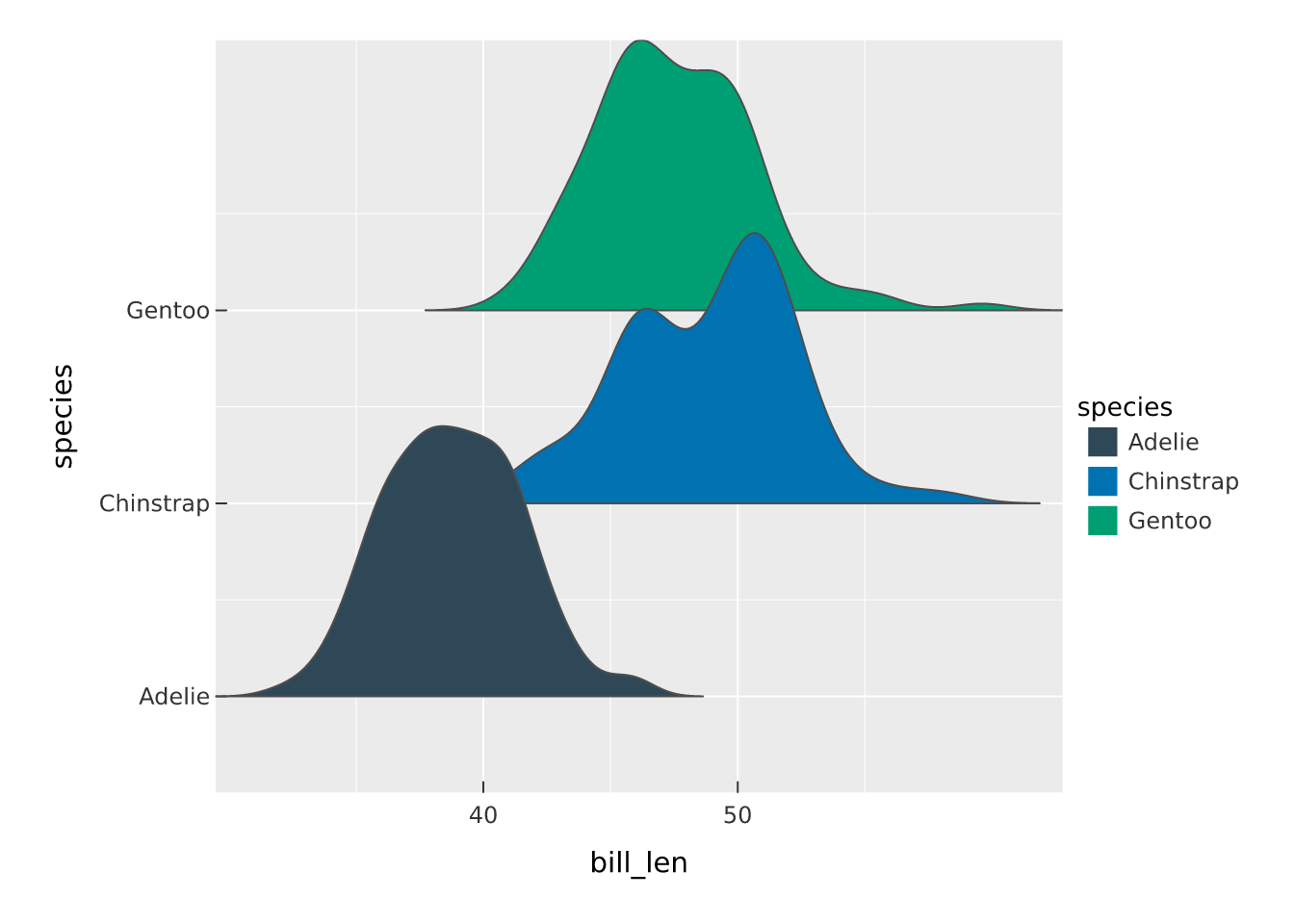

mark_ridgeline() turns that on its side: a density of x per categorical y, with the ridges overlapping so many groups fit in little vertical space. Use the scale argument to tune how much they overlap.
vplot(penguins) |>
mark_ridgeline(x = bill_len, y = species, fill = species)

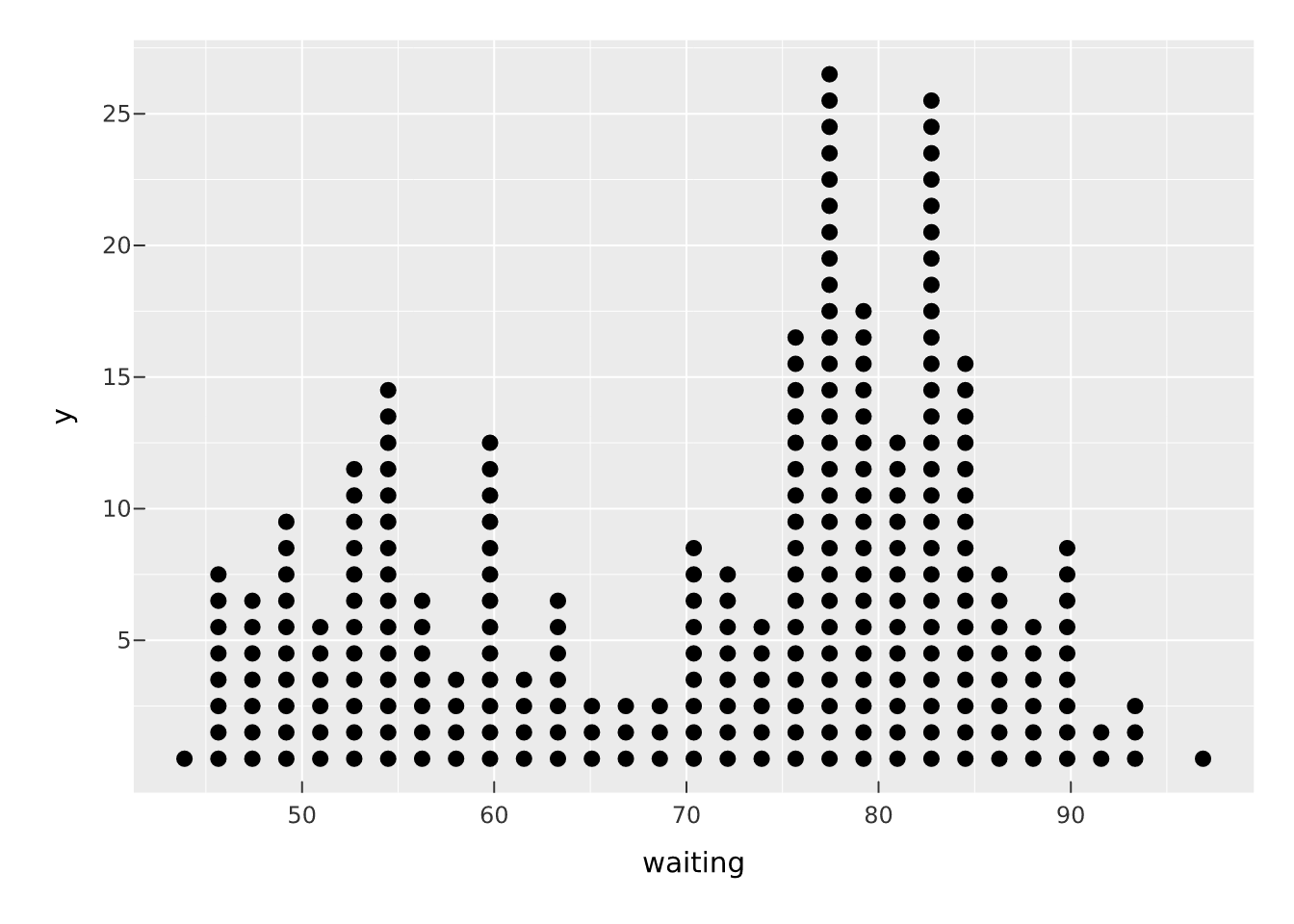

mark_dotplot() bins x and stacks one dot per observation, so the height of each stack is a count you can read dot by dot.
vplot(faithful) |>
mark_dotplot(x = waiting)
2-D density contours

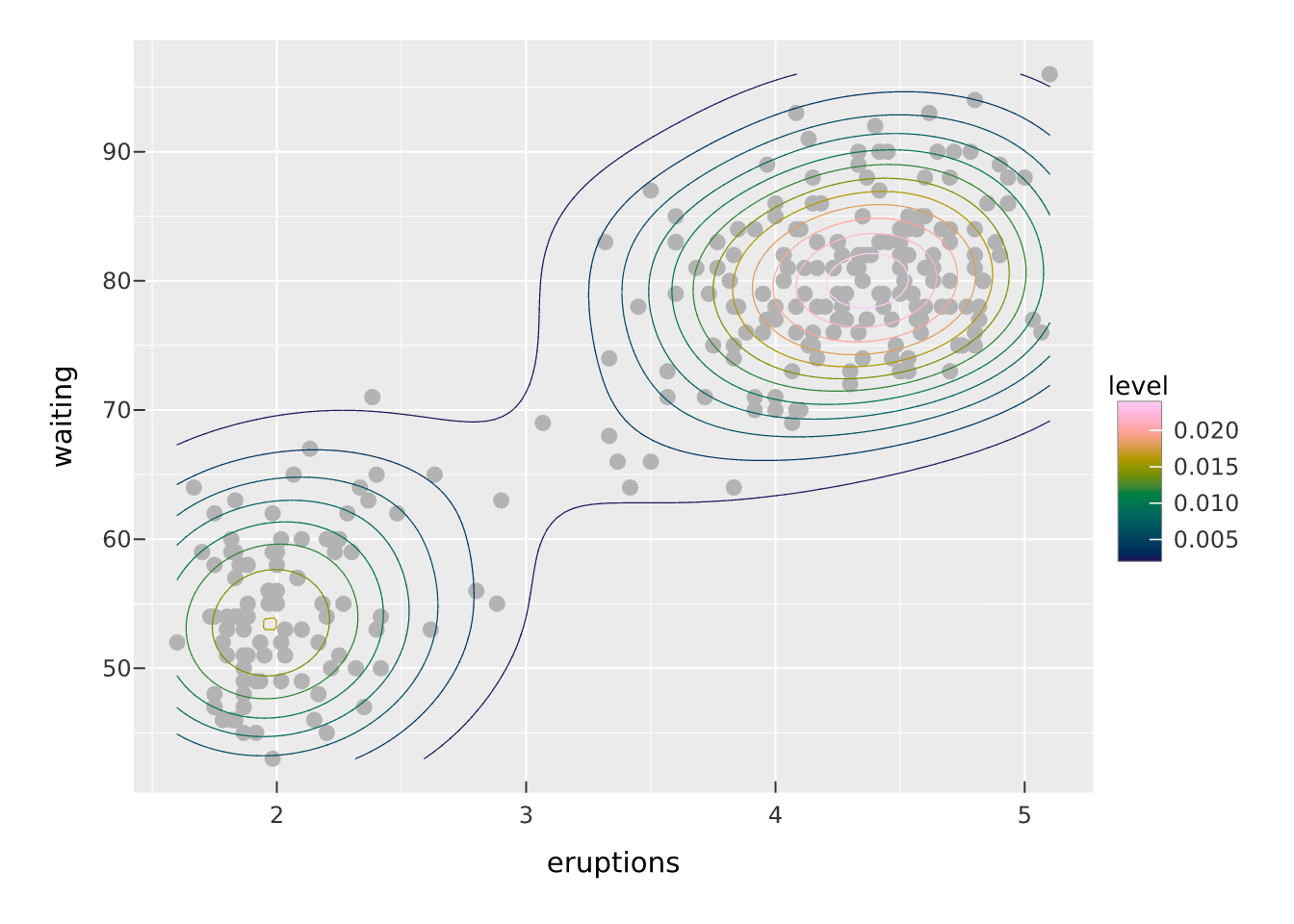

mark_contour() estimates the 2-D density of a point cloud and draws its iso-density contour lines; mark_contour_filled() fills the bands between them. Both are coloured by level automatically. They read best over the points they summarise:
vplot(faithful) |>
mark_point(x = eruptions, y = waiting, color = "grey70") |>
mark_contour(x = eruptions, y = waiting)

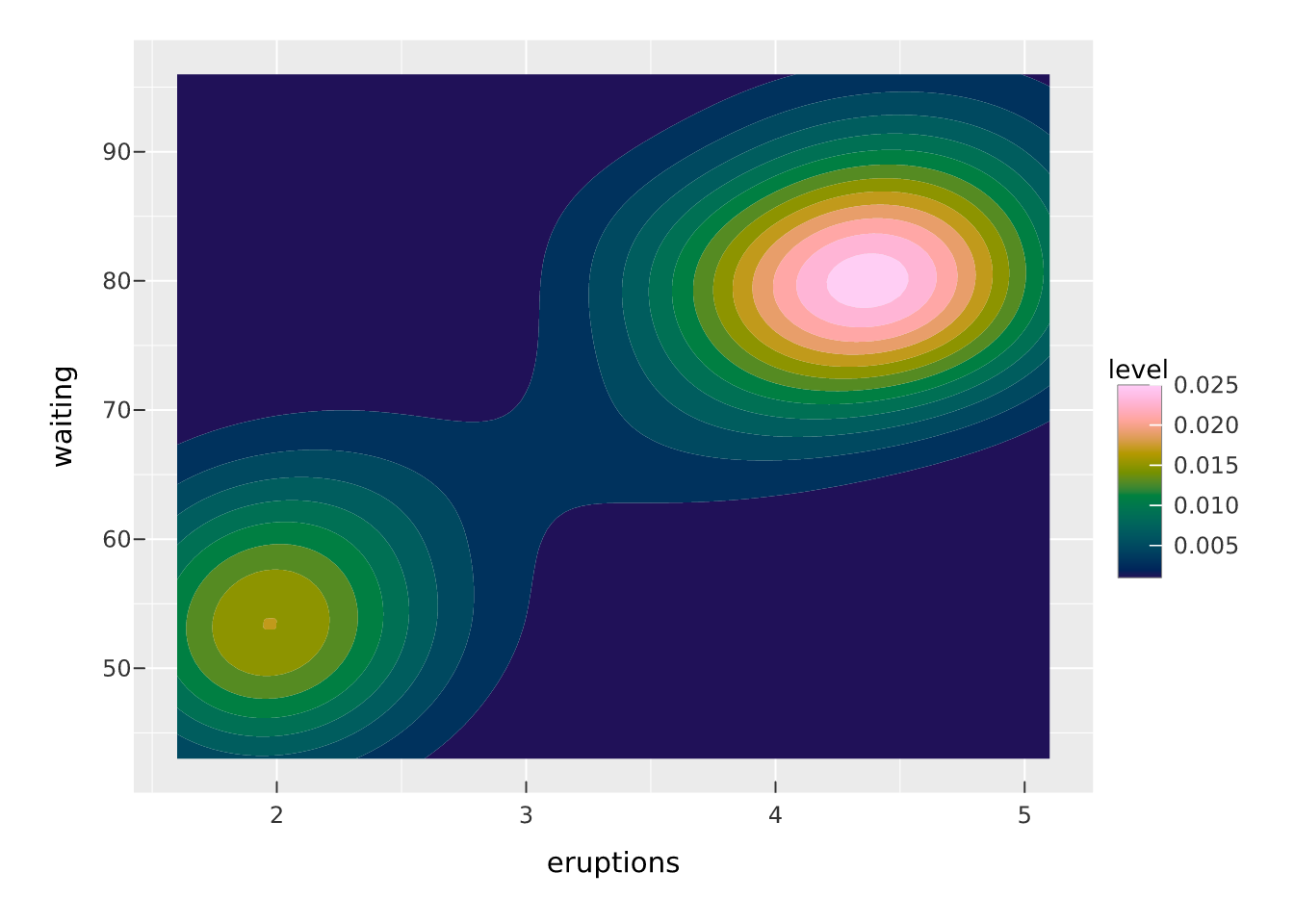

vplot(faithful) |>
mark_contour_filled(x = eruptions, y = waiting)

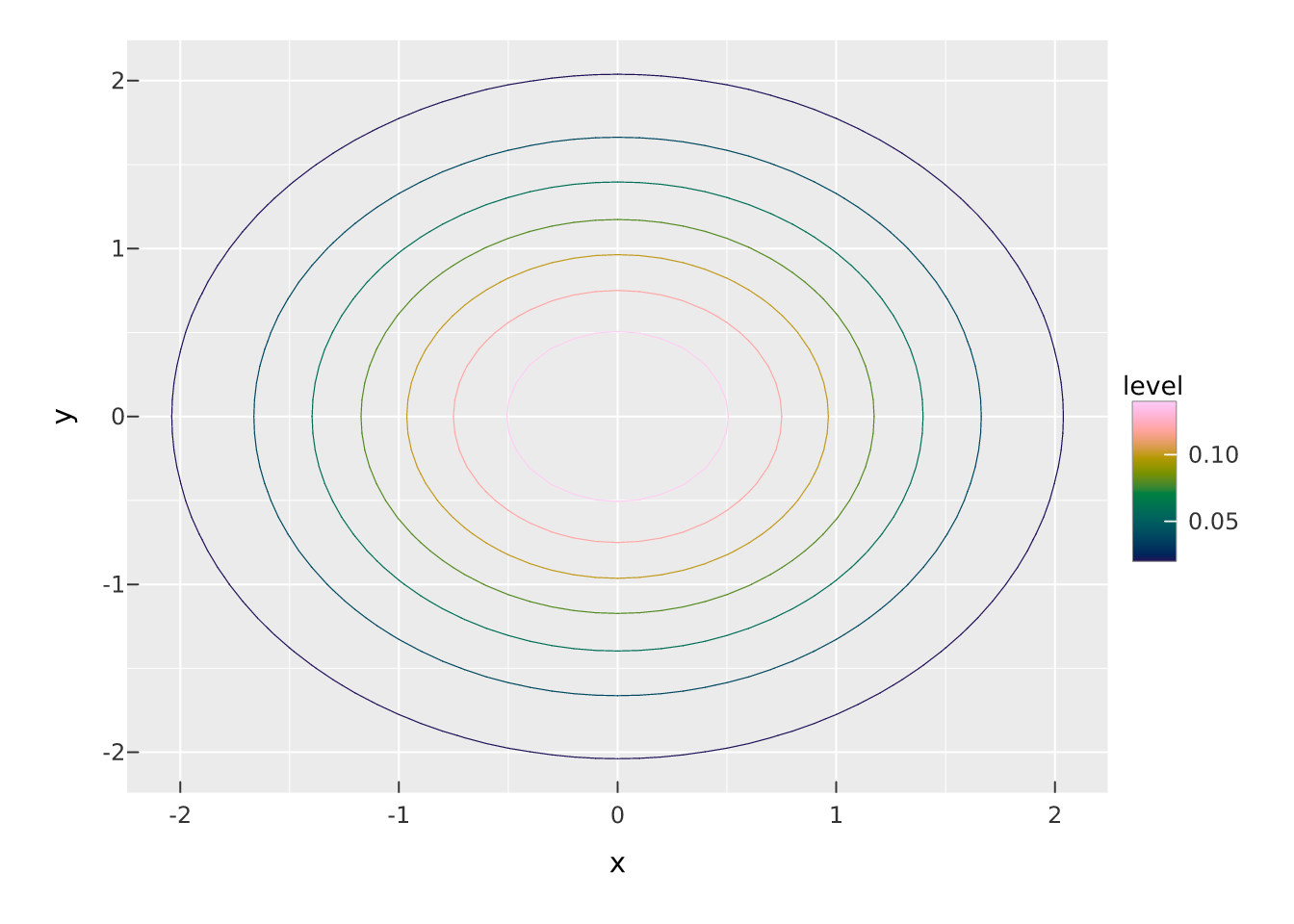

The density estimate uses MASS::kde2d(); tune the levels with bins, binwidth, or explicit breaks. To contour a surface you already have (a z value on a regular x/y grid) rather than a point density, map z:
grid <- expand.grid(x = seq(-3, 3, 0.1), y = seq(-3, 3, 0.1))
grid$z <- with(grid, dnorm(x) * dnorm(y))
vplot(grid) |> mark_contour(x = x, y = y, z = z)
Contour tracing needs the isoband package (and MASS for the density estimate).
Reaching computed variables with after_stat

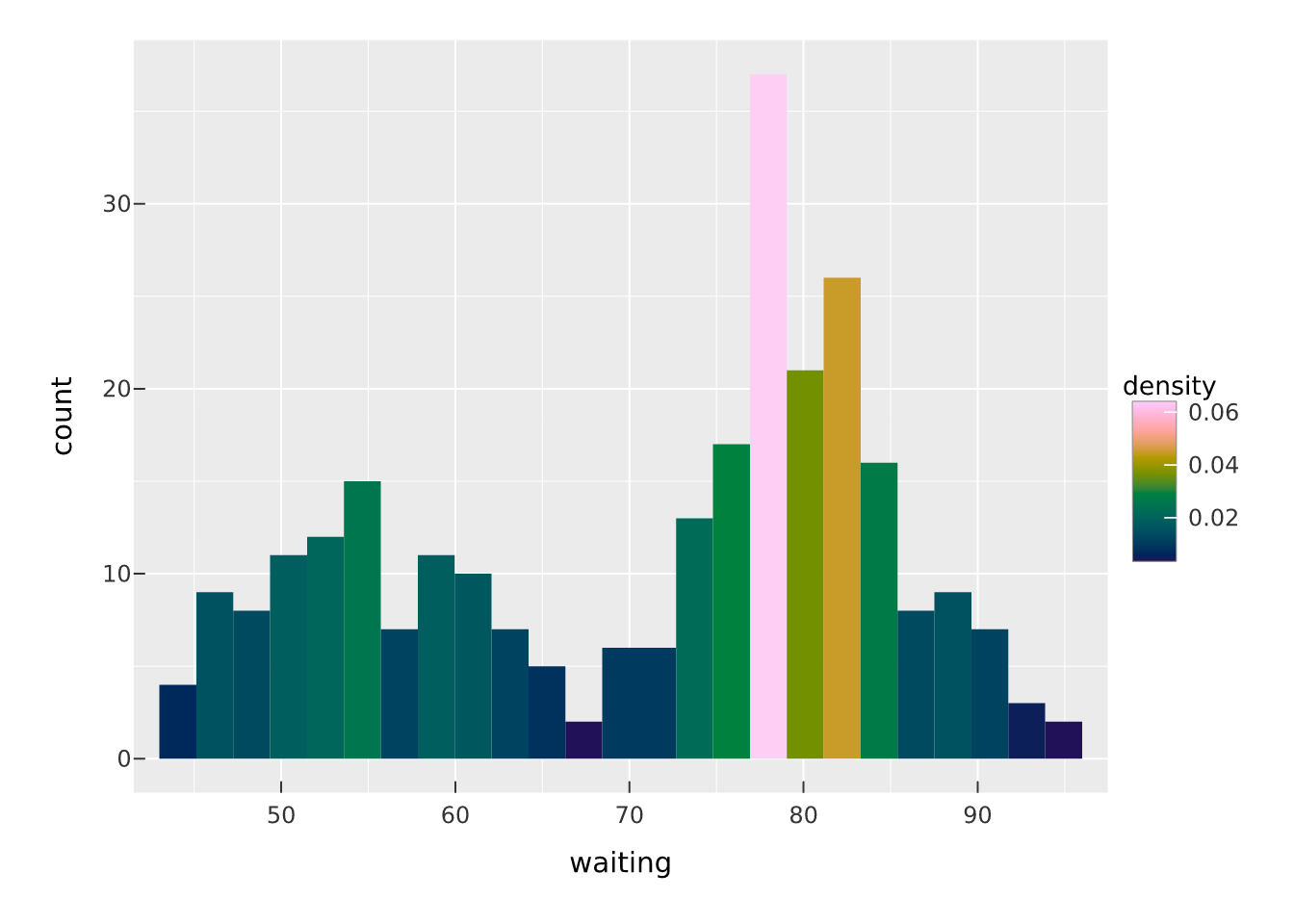

A statistical mark produces new variables that were not in your data: a histogram computes a count and a density, for example. after_stat() lets an encoding refer to one of those computed variables instead of a data column. The classic use is a density-scaled histogram.
vplot(faithful) |>
mark_histogram(x = waiting, bins = 25, fill = after_stat(density))
Because the aesthetic is now driven by a computed value, its scale trains on that value like any other, and you get the matching legend.
Millions of points with mark_datashade

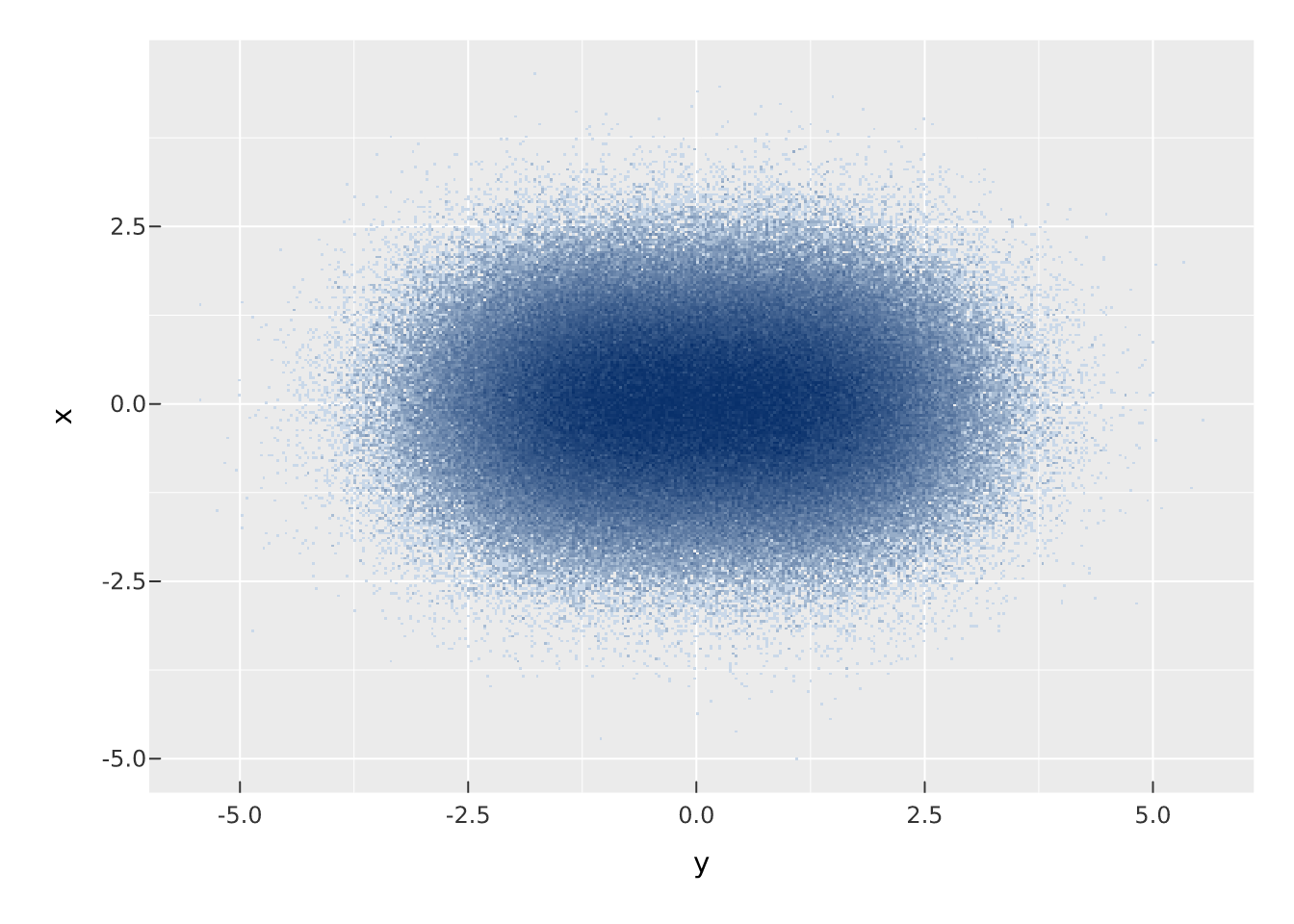

When there are too many points to draw one marker each (overplotted, up to millions), individual markers become uninformative and slow to draw. mark_datashade() bins the points into a canvas-sized grid in a single pass and colours each cell by density, drawing one raster. Its cost is decoupled from the number of points.
n <- 5e5
big <- data.frame(
x = rnorm(n),
y = rnorm(n) + rep(c(-1, 1), each = n / 2)
)
vplot(big) |>
mark_datashade(x = y, y = x, how = "eq_hist")
Here how = "eq_hist" uses histogram equalisation so both dense and sparse regions stay visible; the grid resolution is set by width and height. Per-point aesthetics do not apply, because cell colour encodes density rather than any single point.
mark_point() also has an auto = TRUE switch that falls back to a datashaded raster automatically when a layer has very many rows, so you can keep writing mark_point() and let vellumplot choose the representation.
