A low-level graphics framework with a Rust backend • vellum

vellum is a low-level graphics framework for R, in the spirit of grid, with a Rust backend. You describe a scene with a small, declarative R API; the scene graph, unit/layout engine, and rendering all run in Rust; and the same scene renders to PNG, SVG, or PDF.

It is the foundation layer a grammar of graphics builds on, the way grid underlies ggplot2. It is not a plotting package itself; the vellumplot grammar of graphics is built on top of it.

library(vellum)

vl_scene(width = 5, height = 2.4, bg = "white") |>
  draw(rect_grob(width = 0.94, height = 0.82,
                 gp = vl_gpar(fill = linear_gradient(c("#1b2a4a", "#3a7bd5")), col = NA))) |>
  draw(circle_grob(x = 0.16, y = 0.5, r = 0.28,
                   gp = vl_gpar(fill = "#f7c948", col = NA))) |>
  draw(text_grob("vellum", x = 0.62, y = 0.5,
                 gp = vl_gpar(fontsize = 64, col = "white", fontface = "bold"))) |>
  render("man/figures/README-hello.png")

A scene is built functionally: vl_scene() followed by a pipeline of push(), draw(), and pop() over an immutable tree. It is rendered with render(), which picks the backend from the file extension.

What sets it apart

Rust backend, deterministic output. Rendering runs in Rust (tiny-skia for raster, krilla for PDF) and is byte-stable, so output is reproducible and snapshot-testable.
One scene, three backends. The same scene renders to PNG, SVG, and PDF with consistent geometry, via render(scene, "plot.svg") or render(scene, "plot.pdf").
A retained scene graph, not immediate-mode drawing. Because the scene is kept (not drawn-and-forgotten), vellum offers capabilities grid does not: hit-testing (hit_test() picks the topmost grob under a point) and named, editable nodes (node_names() / get_node() / edit_node()).
A modern paint model across all backends. Linear & radial gradients, tiling patterns, alpha/luminance masks, and group opacity (vl_viewport(alpha=)).
Built-in big-data aggregation. datashade() bins millions of points into a density raster in one pass, with no overplotting and no giant files.
Device-independent, faithful text. Shaping runs through textshaping (which sits on systemfonts) — the same stack as ragg/svglite — with per-glyph fallback, justification, rotation, and Markdown-style rich labels (md(): bold/italic, super/subscript, coloured spans).
Vectorised primitives and a flex layout engine. Batched rects/circles/points/segments/text, nested viewports with rotation and arbitrary-path clipping, and a row/column layout solver with "null" (flexible) tracks.
Grid interop. as_vellum() / render_grid() render an existing grid grob tree, including ggplot2 and lattice, through the vellum backend.

Installation

vellum compiles a Rust crate, so you need a Rust toolchain (cargo/rustc) in addition to R. Then:

# install.packages("pak")
pak::pak("r-vellum/vellum")

Examples

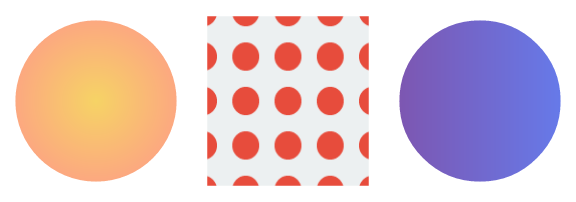

The paint model

Gradients, a tiling pattern, and a mask, composed with viewports:

tile <- list(rect_grob(gp = vl_gpar(fill = "#ecf0f1", col = NA)),
             circle_grob(r = 0.32, gp = vl_gpar(fill = "#e74c3c", col = NA)))

vl_scene(6, 2.1, bg = "white") |>
  # radial gradient
  push(vl_viewport(x = 1/6, width = 1/3)) |>
    draw(circle_grob(r = 0.42, gp = vl_gpar(fill = radial_gradient(c("#f6d365", "#fda085")), col = NA))) |>
  pop() |>
  # tiling pattern
  push(vl_viewport(x = 3/6, width = 1/3)) |>
    draw(rect_grob(width = 0.84, height = 0.84,
                   gp = vl_gpar(fill = vl_pattern(tile, width = 0.22, height = 0.22), col = NA))) |>
  pop() |>
  # a linear gradient, clipped to a circular mask
  push(vl_viewport(x = 5/6, width = 1/3,
                mask = as_mask(circle_grob(r = 0.42, gp = vl_gpar(fill = "white", col = NA))))) |>
    draw(rect_grob(gp = vl_gpar(fill = linear_gradient(c("#7f53ac", "#647dee")), col = NA))) |>
  pop() |>
  render("man/figures/README-paint.png")

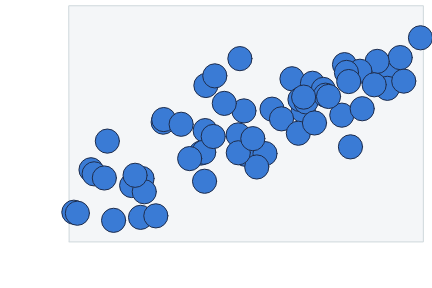

A data scene with native coordinates

vellum is the layer a grammar builds on, so plots are assembled from primitives in a viewport with its own xscale / yscale ("native" units):

set.seed(1)
x <- runif(60, 0, 10)
y <- 1.8 * x + rnorm(60, 0, 4)

vl_scene(4.5, 3, bg = "white") |>
  push(vl_viewport(x = 0.57, y = 0.57, width = 0.82, height = 0.82,
                xscale = c(0, 10), yscale = range(pretty(y)))) |>
    draw(rect_grob(gp = vl_gpar(fill = "#f4f6f8", col = "#cfd8dc"))) |>
    draw(points_grob(vl_unit(x, "native"), vl_unit(y, "native"), size = vl_unit(3.2, "mm"),
                     gp = vl_gpar(fill = "#3a7bd5", col = "#1b2a4a", lwd = 1))) |>
  pop() |>
  render("man/figures/README-scatter.png")

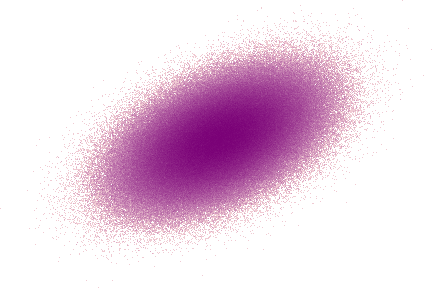

A million points with `datashade()`

datashade() aggregates the points into a grid the size of the output raster, counts how many land in each cell, and colours each cell by that count. Because the work scales with the number of pixels rather than the number of points, it draws millions of points quickly, shows true density instead of the solid blob that overplotting produces, and keeps the output file small.

set.seed(2)
n <- 1e6
xx <- rnorm(n)
yy <- xx * 0.55 + rnorm(n)

vl_scene(4.5, 3, bg = "white") |>
  draw(datashade(xx, yy, width = 450, height = 300, colors = c("#fde0dd", "#7a0177"))) |>
  render("man/figures/README-datashade.png")

One scene, three formats

s <- vl_scene(4, 3) |>
  draw(circle_grob(r = 0.3, gp = vl_gpar(fill = "tomato", col = NA)))

render(s, "out.png") # raster   (tiny-skia)
render(s, "out.svg") # vector   (hand-rolled SVG)
render(s, "out.pdf") # vector   (krilla)

Relationship to grid and ggplot2

vellum sits at grid’s level of the stack: units, viewports, grobs, layout, and rendering, but with a Rust scene graph, multi-backend output, hit-testing, and a modern paint model. It is not a grammar of graphics (no scales, stats, geoms, or facets) — that is vellumplot, which compiles a plot spec into a vellum scene. To render existing grid / ggplot2 / lattice output through the vellum backend, use as_vellum() / render_grid().

The vellum ecosystem

vellum is the backend of a small ecosystem of packages that share its scene model:

vellum — the parchment: the low-level graphics backend (this package).
vellumplot — the pen: a pipe-first grammar of graphics that compiles a plot spec into a vellum scene.
vellumwidget — the annotation: client-side interactive HTML widgets for vellum scenes and vellumplot plots.
vellumverse — installs and loads the whole ecosystem in one step.

Development

vellum wires an R package to a Rust crate via extendr (crates are vendored for offline/CRAN builds).

rextendr::document() # compile the Rust backend + regenerate R wrappers
devtools::test()     # run the test suite
