This article covers the two pieces you spend most of your time with in vellum: the scene graph (units, viewports, and the tree they form) and the paint model (gradients, patterns, and masks) shared across every backend.

The scene graph

A vellum scene is a tree. The root is the page created by vl_scene(); every push() adds a vl_viewport() child and descends into it; every draw() appends a grob at the current level; pop() climbs back up. The tree is an immutable value that outlives its construction, which is what enables the queries in vignette("retained-mode").

Because it is a tree, viewports nest, and a child’s geometry is expressed relative to its parent. That is the whole mechanism behind panels, insets, and faceting: push a viewport for a sub-region, draw inside it in local coordinates, then pop.

vl_scene(6, 2.4, bg = "white") |>
  # a full-width band
  draw(rect_grob(height = 0.6, gp = vl_gpar(fill = "#eef2f6", col = NA))) |>
  # an inset viewport occupying the middle third
  push(vl_viewport(x = 0.5, width = 1 / 3, height = 0.8)) |>
  draw(rect_grob(gp = vl_gpar(fill = "#3a7bd5", col = NA))) |>
  draw(text_grob("inset", gp = vl_gpar(col = "white", fontface = "bold"))) |>
  pop()

Units

Coordinates and sizes are vl_unit() vectors: a value paired with a unit name. Each element carries its own unit, so one vector can mix coordinate systems, and a grob can even use different units on its x and y axes.

The units you reach for most:

  • "npc" (the default): normalised parent coordinates, 0 at bottom/left and 1 at top/right of the current viewport.
  • "native": the enclosing viewport’s xscale / yscale, so data values map directly. This is what you use for plotted data.
  • "mm", "cm", "in", "pt": absolute physical lengths that keep their size regardless of the viewport.

A bare number is interpreted in the grob’s default units (usually "npc"), so x = 0.5 and x = vl_unit(0.5, "npc") are the same thing.

vl_unit(1:3, "native")
#> <vellum_unit[3]>
#> [1] 1native 2native 3native
vl_unit(c(0.5, 1), c("npc", "in"))
#> <vellum_unit[2]>
#> [1] 0.5npc 1.0in

"native" units need a viewport with scales to resolve against. Set xscale and yscale when you push:

vl_scene(5, 3, bg = "white") |>
  push(vl_viewport(
    width = 0.86, height = 0.82,
    xscale = c(0, 10), yscale = c(-5, 25)
  )) |>
  draw(rect_grob(gp = vl_gpar(fill = "grey97", col = "grey70"))) |>
  draw(lines_grob(
    x = vl_unit(0:10, "native"),
    y = vl_unit((0:10) * 2, "native"),
    gp = vl_gpar(col = "steelblue", lwd = 2)
  )) |>
  pop()

Font- and string-relative units ("char", "line", "strwidth", "grobwidth") resolve to millimetres at construction, because vellum can measure text without a device. Arithmetic reduces as far as it can: same-unit sums combine, two absolute units become millimetres, and a position base plus an absolute becomes a compound unit that keeps the base and carries the offset in mm (vl_unit(1, "npc") - vl_unit(2, "mm") prints as 1npc-2mm and resolves as “the npc position, then 2 mm left”, exactly, at any size or dpi). Only two different position bases ("npc" plus "native") cannot be reduced to one unit, and that errors rather than being guessed.

The paint model

Any fill in vl_gpar() can be more than a flat colour — and so can col. The same three paint types work identically on the raster, SVG, and PDF backends (with the documented exception that the PDF backend does not yet rasterise patterns).

Gradients

linear_gradient() and radial_gradient() interpolate between colour stops. Their geometry is given in a coordinate system ("npc" by default) and is resolved against the viewport at draw time, so a gradient transforms with its grob just like the outline does.

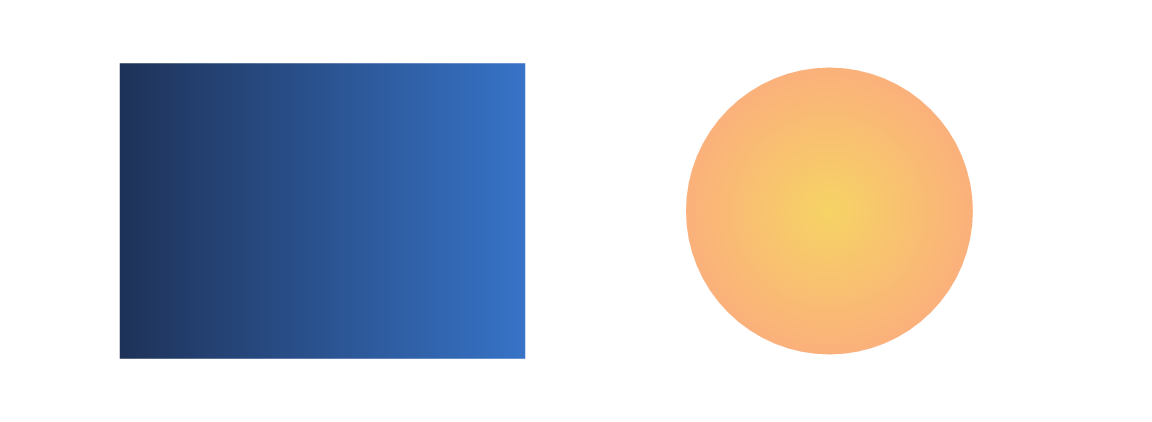

vl_scene(6, 2.2, bg = "white") |>
  push(vl_viewport(x = 0.28, width = 0.44)) |>
  draw(rect_grob(
    width = 0.8, height = 0.7,
    gp = vl_gpar(fill = linear_gradient(c("#1b2a4a", "#3a7bd5")), col = NA)
  )) |>
  pop() |>
  push(vl_viewport(x = 0.72, width = 0.44)) |>
  draw(circle_grob(
    r = 0.34,
    gp = vl_gpar(fill = radial_gradient(c("#f6d365", "#fda085")), col = NA)
  )) |>
  pop()

Stops blend in sRGB by default. Blending two distant hues there passes through a muddy, over-dark middle — a blue→yellow ramp dips through grey. Set interpolation = "oklab" to blend in the perceptually-uniform Oklab space instead, so the ramp stays even and vivid. The same option works on every backend (the stops are pre-sampled in Oklab into ordinary sRGB stops), and the default "srgb" is unchanged.

bar <- function(x, interp) {
  rect_grob(
    x = x, width = 0.46, height = 0.7,
    gp = vl_gpar(col = NA, fill = linear_gradient(c("blue", "yellow"), interpolation = interp))
  )
}
vl_scene(6, 1.6, bg = "white") |>
  draw(bar(0.27, "srgb")) |> # sRGB: grey dead-zone in the middle
  draw(bar(0.73, "oklab")) # Oklab: clean cyan/green transition

Patterns

vl_pattern() fills a shape by tiling a grob (or a list of grobs). The tile is authored in the unit square and repeated across a cell whose size you choose.

tile <- list(
  rect_grob(gp = vl_gpar(fill = "#ecf0f1", col = NA)),
  circle_grob(r = 0.32, gp = vl_gpar(fill = "#e74c3c", col = NA))
)

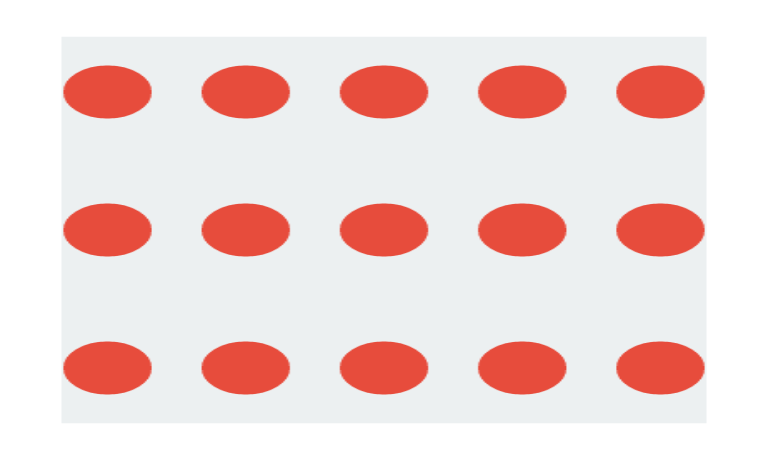

vl_scene(4, 2.4, bg = "white") |>
  draw(rect_grob(
    width = 0.84, height = 0.84,
    gp = vl_gpar(fill = vl_pattern(tile, width = 0.18, height = 0.3), col = NA)
  ))

Hatching

vl_hatch() fills a shape with ruled lines. Unlike vl_pattern(), which rasterises a tile, a hatch is geometry — it stays crisp at any zoom, prints correctly, and is real <path> data in SVG rather than an embedded image.

pal <- c("#D62728", "#2CA02C", "#1F77B4", "#FF7F0E")
angles <- c(0, 45, 90, 135)
s <- vl_scene(6, 1.8)
for (i in 1:4) {
  s <- draw(s, rect_grob(
    x = (i - 0.5) / 4, width = 0.2, height = 0.7,
    gp = vl_gpar(fill = vl_hatch(angle = angles[i], spacing = 3.2, col = pal[i],
                                 bg = "white"),
                 col = "grey25", lwd = 0.8)
  ))
}
display(s)

spacing and width are in points, so a hatch keeps its proportions at any dpi — the same convention fontsize and the text halo use.

The reason to reach for it is that a hatch survives being seen without colour. A categorical encoding that fails for a red/green-blind reader — which render(cvd = ) will show you and vl_lint() will flag — is fixed by encoding with texture as well as hue. Distinct angles (0, 45, 90, 135) read as distinct categories whatever happens to the colours. See vignette("render-quality") for the simulation, and vignette("inspecting-scenes") for the linter.

Hatching is expanded in the scene walk into stroked spans, computed by scanline crossing against the shape, so no backend needs a hatch primitive of its own and only the spans actually inside the shape are emitted. The trade is that SVG gets one path of spans rather than a <pattern> reference.

Masks and group opacity

A mask is a grob whose coverage modulates the visibility of a viewport’s contents. Wrap it with as_mask() and pass it to vl_viewport(mask = ...). Here a linear gradient is clipped to a circular alpha mask.

vl_scene(4, 2.4, bg = "white") |>
  push(vl_viewport(
    mask = as_mask(circle_grob(r = 0.42, gp = vl_gpar(fill = "white", col = NA)))
  )) |>
  draw(rect_grob(gp = vl_gpar(fill = linear_gradient(c("#7f53ac", "#647dee")), col = NA))) |>
  pop()

Related to masks is group opacity. Setting vl_viewport(alpha = ...) composites the viewport’s contents as a single isolated layer at that opacity, so overlapping elements do not accumulate the way per-element vl_gpar(alpha = ) would. That distinction (compositing a group versus fading each mark) is exactly the kind of control a grammar layer needs from its backend.

Stroking with a gradient

col takes the same paints fill does. The difference is only where they apply: a fill paints the region a shape encloses, a stroke paints the region the line covers. So a trajectory can carry its colour along itself:

t <- seq(0, 1, length.out = 120)

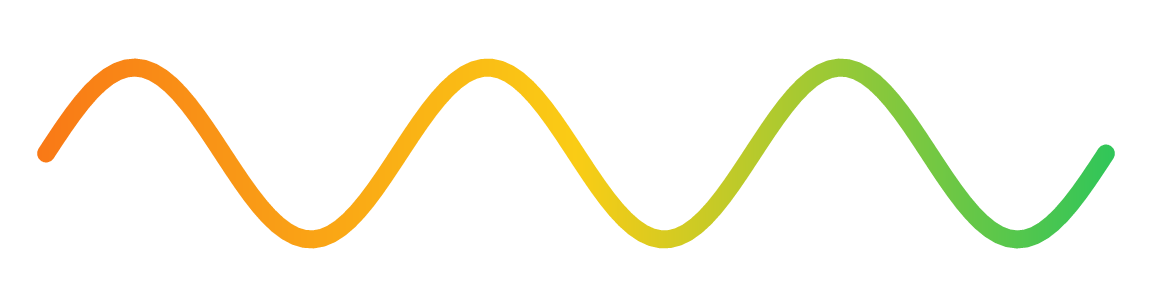

display(
  vl_scene(6, 1.6) |>
    draw(lines_grob(0.04 + 0.92 * t, 0.5 + 0.28 * sin(6 * pi * t),
                    gp = vl_gpar(col = linear_gradient(c("#F97316", "#FACC15", "#22C55E")),
                                 lwd = 9)))
)

That is real paint on every backend — SVG emits stroke="url(#…)", PDF a proper shading — not a rasterised approximation, and not the usual workaround of emitting hundreds of one-segment lines each in a slightly different flat colour. It applies to any stroked path, outlines included.

One consequence: text and markers take the gradient’s first stop rather than the ramp, because a glyph run has no path to run a ramp along. They fall back to a colour rather than silently not drawing.

Dash phase

dash_phase says how far into the dash pattern a line begins, in multiples of lwd — so it scales with the line width exactly as the dash nibbles do. Stepping it across a set of rules makes the dashes walk, which is also how you animate marching ants.

s <- vl_scene(6, 1.4)
for (i in 0:3) {
  s <- draw(s, segments_grob(0.04, 0.85 - i * 0.22, 0.96, 0.85 - i * 0.22,
    gp = vl_gpar(col = "grey15", lwd = 5, lty = "dashed", dash_phase = i * 1.5)))
}
display(s)

Per-segment style

segments_grob() takes a col and an lwd per segment, mirroring the per-element fill that hexagon_grob() and sector_grob() carry:

n <- 14
x <- seq(0.06, 0.94, length.out = n)
display(
  vl_scene(6, 1.2) |>
    draw(segments_grob(x, 0.2, x, 0.8,
                       lwd = seq(1, 13, length.out = n),
                       col = grDevices::hcl.colors(n, "Zissou1")))
)

Without this you would build one grob per segment. That renders the same pixels — identical, in fact — but costs an R-side grob each, and grob construction is the dominant expense on scenes made of many small marks.

No backend can stroke segments differently in a single call, so each segment is still stroked on its own in the output. The saving is in R, not in the file size.

Filling a line

Everything above fills an area. A line has no area: a stroke is a colour applied along a path, not a region, so fill on a lines_grob() has nothing to act on. stroke_to_path() converts one into the other — it returns the region the stroke would have inked, as a path_grob() you can fill like any other:

zig <- lines_grob(c(0.08, 0.3, 0.52, 0.74, 0.94),
                  c(0.30, 0.78, 0.28, 0.76, 0.34),
                  gp = vl_gpar(col = "steelblue", lwd = 16))

ribbon <- stroke_to_path(zig, width = 6, height = 1.8)

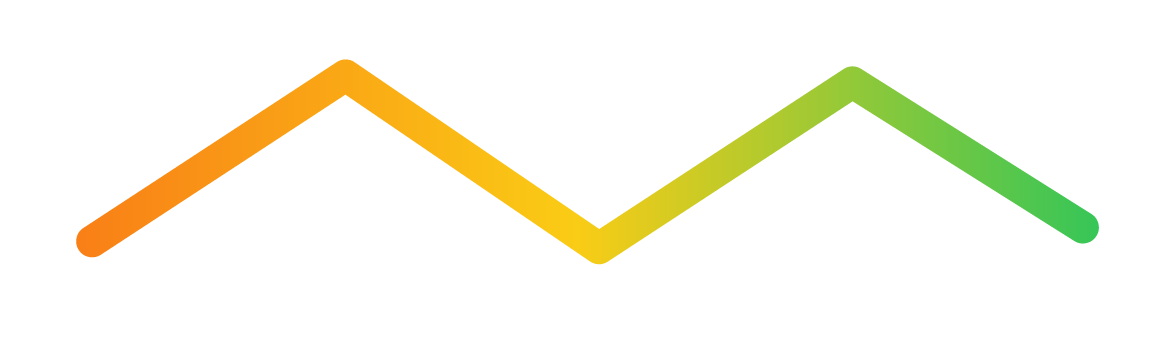

display(
  vl_scene(6, 1.8) |>
    draw(S7::set_props(ribbon, gp = vl_gpar(
      fill = linear_gradient(c("#F97316", "#FACC15", "#22C55E")), col = NA
    )))
)

At constant width the expansion uses the same stroker the rasterizer uses, so the outline is exactly the region that would have been inked rather than an approximation of it. The same conversion is what you want for a cutting plotter or a CNC tool, which need a closed shape rather than a centreline.

One consequence is worth being explicit about: the result is baked at one size. A stroke width is a device quantity, so its outline only exists once a page size and resolution are chosen — they are arguments to stroke_to_path(), and the returned coordinates are absolute millimetres. The outline will not rescale with the page the way the original stroke would. That is inherent: an outline is a shape, not a stroke.

A width that varies

Once a stroke is a region rather than a colour along a path, its width no longer has to be constant. lwd_profile takes multipliers of lwd and varies the width along the line:

# The two bands come from the polylines' own coordinates: an outline is absolute
# mm baked at one page size, so a shorter viewport would offset it, not scale it.
zig_at <- function(lo, hi) {
  lines_grob(
    c(0.08, 0.3, 0.52, 0.74, 0.94),
    c(lo, hi, lo, hi, lo),
    gp = vl_gpar(col = "steelblue", lwd = 16)
  )
}
prof <- function(band, p) {
  S7::set_props(
    stroke_to_path(band, width = 6, height = 2.2, lwd_profile = p),
    gp = vl_gpar(fill = "#3B6EA5", col = NA)
  )
}

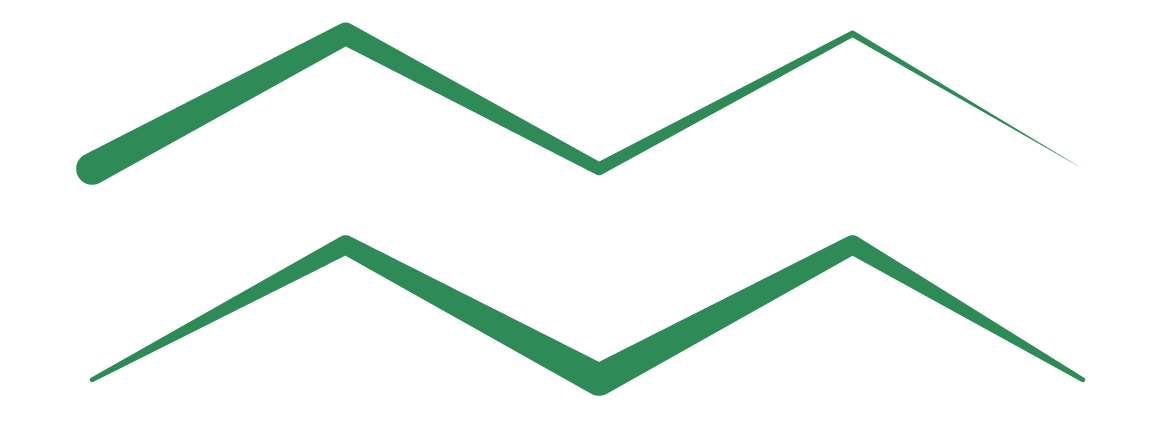

display(
  vl_scene(6, 2.2) |>
    draw(prof(zig_at(0.60, 0.92), c(1, 0))) |>
    draw(prof(zig_at(0.10, 0.42), c(0.15, 1, 0.15)))
)

Above, a taper to a point; below, a leaf that swells in the middle. A zero is a legal width — tapering to nothing is the usual reason to want this — and only an all-zero profile is an error.

By default the values are spread evenly along the drawn length of the stroke and interpolated, so the profile does not care how densely the polyline happens to be sampled and any profile length works. along = "vertex" instead reads one value per vertex, which is what you want when the widths come from data attached to the vertices — a weight per observation, a pressure trace from a tablet. The two agree only when the vertices are evenly spaced, which is why choosing is your job rather than something inferred from the vector’s length.

segments_grob(lwd = ), from the section above, also varies width — but per element, so the width steps between segments and the joins show. This is the join-free alternative, at the cost of being baked at one size.

One caveat worth stating, since the paragraph above makes an unconditional promise that variable width cannot keep: no rasterizer can stroke a line at a changing width, so there is no “same stroker” to defer to here. vellum builds the region a round nib of varying radius sweeps. It agrees with the constant-width expansion as a picture, but not to the last bit — and width varies linearly between vertices, so a taper is only as smooth as the polyline under it.

A note on dense paths

Paths with thousands of vertices — a coastline, a long time series — carry far more detail than the canvas has pixels to distinguish. vellum simplifies them at render resolution, dropping vertices that could not have changed a pixel. The renderer is the only layer that knows the resolution, which is why this belongs here rather than in a data-preparation step.

It is automatic and needs no code, but the dial is options(vellum.simplify = ): a Douglas–Peucker tolerance in device pixels, defaulting to 0.1, with 0 disabling it. On a 50,000-vertex coastline it is worth roughly 1.7× on render time and 65% of the SVG size.

Like the marker-sprite and glyph-bitmap fast paths, this is a deliberate fidelity trade rather than a free lunch, so it engages only where the win is real: paths under 1000 points are never touched, and stay byte-identical.

Recap

  • A scene is a retained tree of nested viewports and grobs, built with push() / draw() / pop().
  • vl_unit() vectors express geometry; "npc" is relative to the viewport, "native" follows the data scales, and "mm" and friends are absolute.
  • vl_gpar(fill = ) and vl_gpar(col = ) accept gradients, patterns and hatches, and vl_viewport() accepts masks, group opacity, and blend modes, all consistent across backends.
  • stroke_to_path() turns a stroke into a fillable region, at a width that can vary along the line, so a line can carry a gradient; dense paths are simplified at render resolution automatically.
