Facet a plot into a grid of panels

facet_wrap() lays panels out in a ribbon wrapped into ncol/nrow; facet_grid() arranges them on a 2-D grid defined by a rows ~ cols formula. Position scales are shared across panels by default (so axes align); pass scales = "free_x", "free_y", or "free" to train them per panel. Colour and size scales (and their legends) are always shared in this version.

Usage

facet_wrap(
  plot,
  facets,
  ncol = NULL,
  nrow = NULL,
  scales = c("fixed", "free_x", "free_y", "free")
)

facet_grid(plot, facets, scales = c("fixed", "free_x", "free_y", "free"))

Arguments

plot

A PlotSpec.

facets

A faceting formula. For facet_wrap(), one-sided such as ~ cyl (one or more +-separated variables); for facet_grid(), a two-sided rows ~ cols (use . for no faceting on a side).

ncol, nrow

Number of columns/rows for facet_wrap().

scales

One of "fixed" (default), "free_x", "free_y", "free".

Value

The modified PlotSpec.

Examples

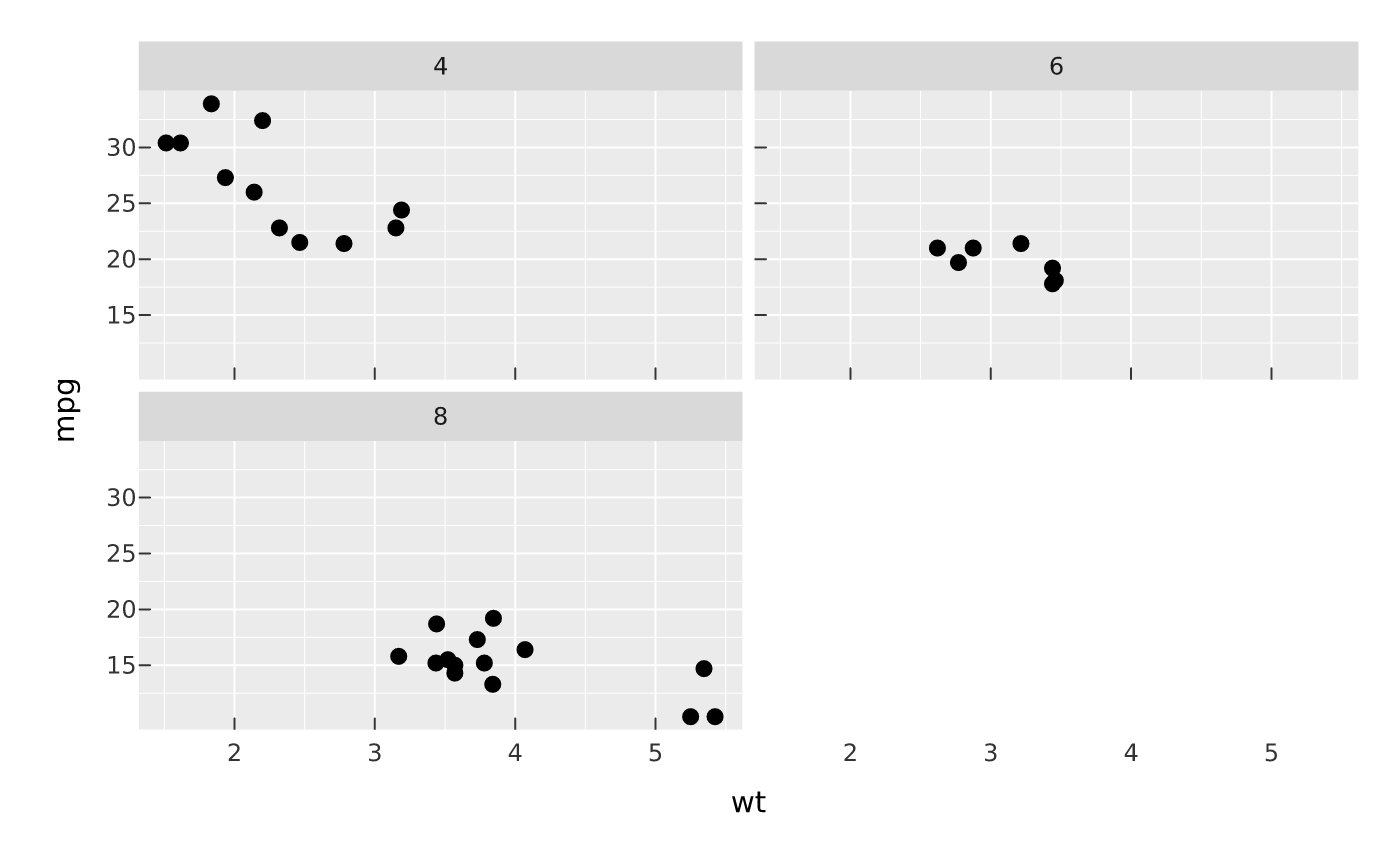

vplot(mtcars) |> mark_point(x = wt, y = mpg) |> facet_wrap(~cyl)

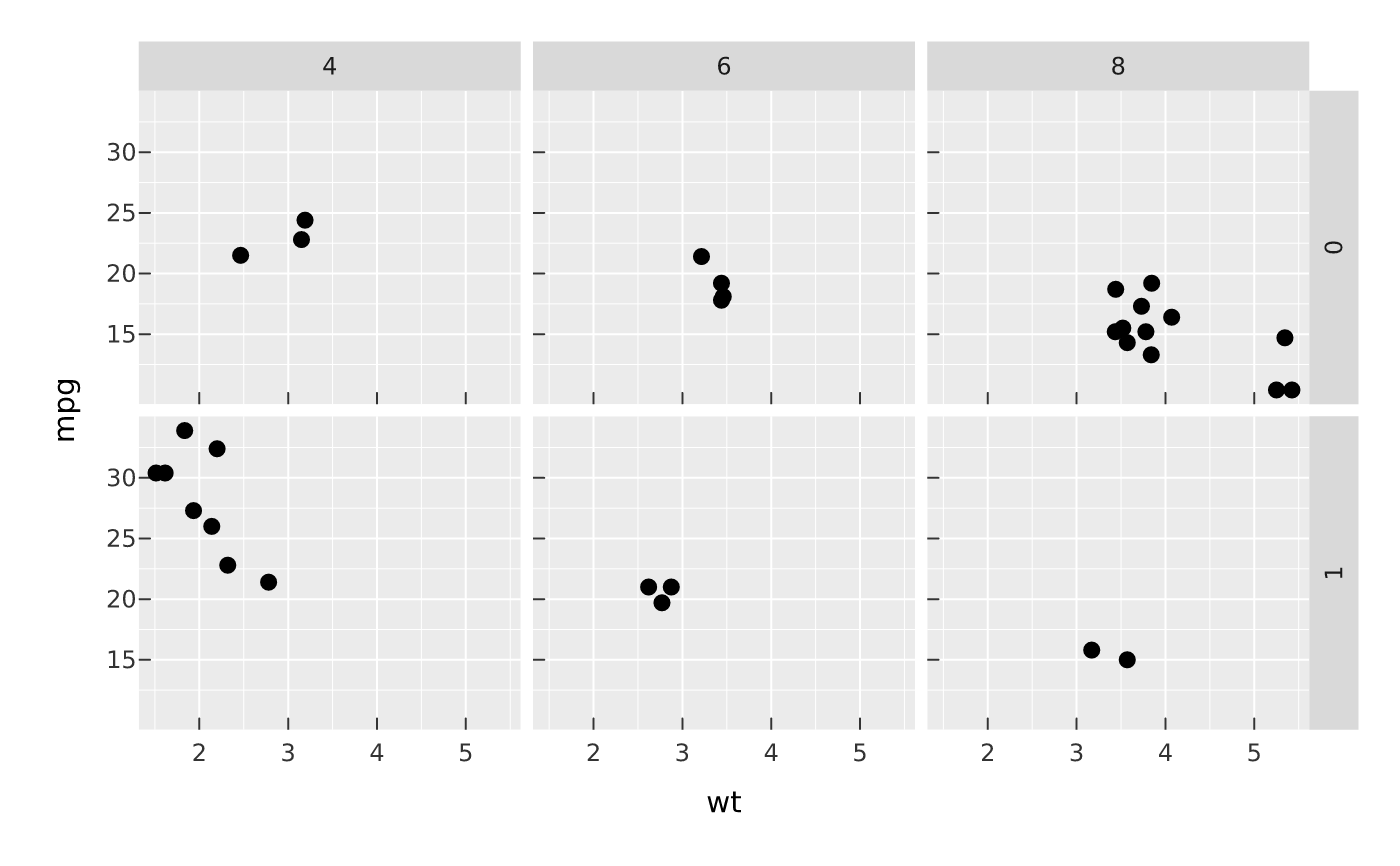

vplot(mtcars) |> mark_point(x = wt, y = mpg) |> facet_grid(am ~ cyl)
