The compiler: spec to scene

Most plotting libraries draw as you call them: each function pushes graphics onto a device. vellumplot does not. When you build a plot, nothing is drawn. You are assembling a spec, a plain S7 object that records the data, the layers, the scales, the facet, the coord, and the theme. Drawing happens later, in one pass, when a compiler turns that spec into a vellum scene. This article is about that separation and why it is worth having.

The spec is just data

Building a plot returns a value you can hold, inspect, and modify before anything is rendered.

p <- vplot(mtcars) |>
  mark_point(x = wt, y = mpg, color = hp) |>
  mark_smooth(x = wt, y = mpg)

p is a spec, not a picture. summary() shows its structure without drawing it:

summary(p)
#> <PlotSpec> 32x11 (11 columns), page 6x4 in
#>
#> ── layers
#> • mark_point(x = wt, y = mpg, color = hp)
#> • mark_smooth(x = wt, y = mpg)

Because the spec is an ordinary object, a plot is a value like any other. You can build it in one function and return it, keep a list of specs and render them in a loop, add a layer to a plot someone else handed you, or save the spec and rebuild the exact figure later. The plot is decoupled from the act of drawing it.

What the compiler does

Printing the spec (or calling render_plot()) runs the compiler. It is a pipeline of distinct stages, each consuming the output of the last:

1. Resolve encodings. Evaluate the tidy-eval expressions (x = wt, color = hp) against the data for every layer, producing concrete columns.
2. Apply stats and positions. Marks with a statistical transform (histogram, density, smooth) compute their derived data here, and position adjustments (stack, dodge, jitter) are applied.
3. Train scales. Scan the resolved values across all layers to work out each scale’s domain, then build the mapping from data to colour, size, shape, and position. This is why layered marks share axes without you aligning anything.
4. Measure layout. Lay out the panel (or the grid of facet panels), reserving room for axes, strips, legends, and titles, and measure where everything goes.
5. Compile guides. Emit the axes, gridlines, and legends the trained scales imply.
6. Compile marks. Turn each layer into vellum grobs positioned in the panel.

The result is a vellum scene: a resolution-independent description of the drawing that the backend can render to PNG, SVG, or PDF. vellumplot never touches a graphics device itself; it produces a scene and hands it to vellum.

Why this design pays off

Scales that span layers. Training happens after every layer’s data is resolved, so a point cloud and a fitted line automatically land on the same axes. There is no drawing order to get wrong.

Faceting is a layout question, not a redraw. Because layout is its own stage over an already-trained spec, splitting into panels reuses the same resolved data and scales. Panels can share scales or, via the resolve_scale() lattice, train independently, and either way it is one compile.

Inspectability. You can look at a plot before committing to it. summary() reports the layers and page size; the spec itself carries the answer to “what will this draw?” without drawing it. That makes plots testable: you can assert on the spec. (ggplot2 also has a summary() method, so this is a difference of degree — the degree being that the compile runs without a device, so the answer extends to where things land, not just what is mapped.)

Marks keep their identity, and their geometry, after the compile. Because the target is a vellum scene rather than a device, each drawn element arrives with its data key and its resolved device-pixel box (vellum::scene_model()). That table is what vellumwidget reads to add tooltips, selection, and brushing, what the accessibility layer turns into a described image, and what a positional test can assert against. It is the one thing in this stack with no counterpart in the grid/ggplot2 pipeline, where resolved geometry lives inside a draw and is gone when the draw ends.

One scene, many outputs. The same compiled scene is walked for raster, for vector, and for the widget, instead of each output re-solving layout with its own device’s text metrics. Write the plot once, choose the output later, and the versions cannot disagree about geometry.

Rendering

Two ways to draw. Print the spec to see it in the plots pane or embed it in a knitr or Quarto document, exactly like ggplot2:

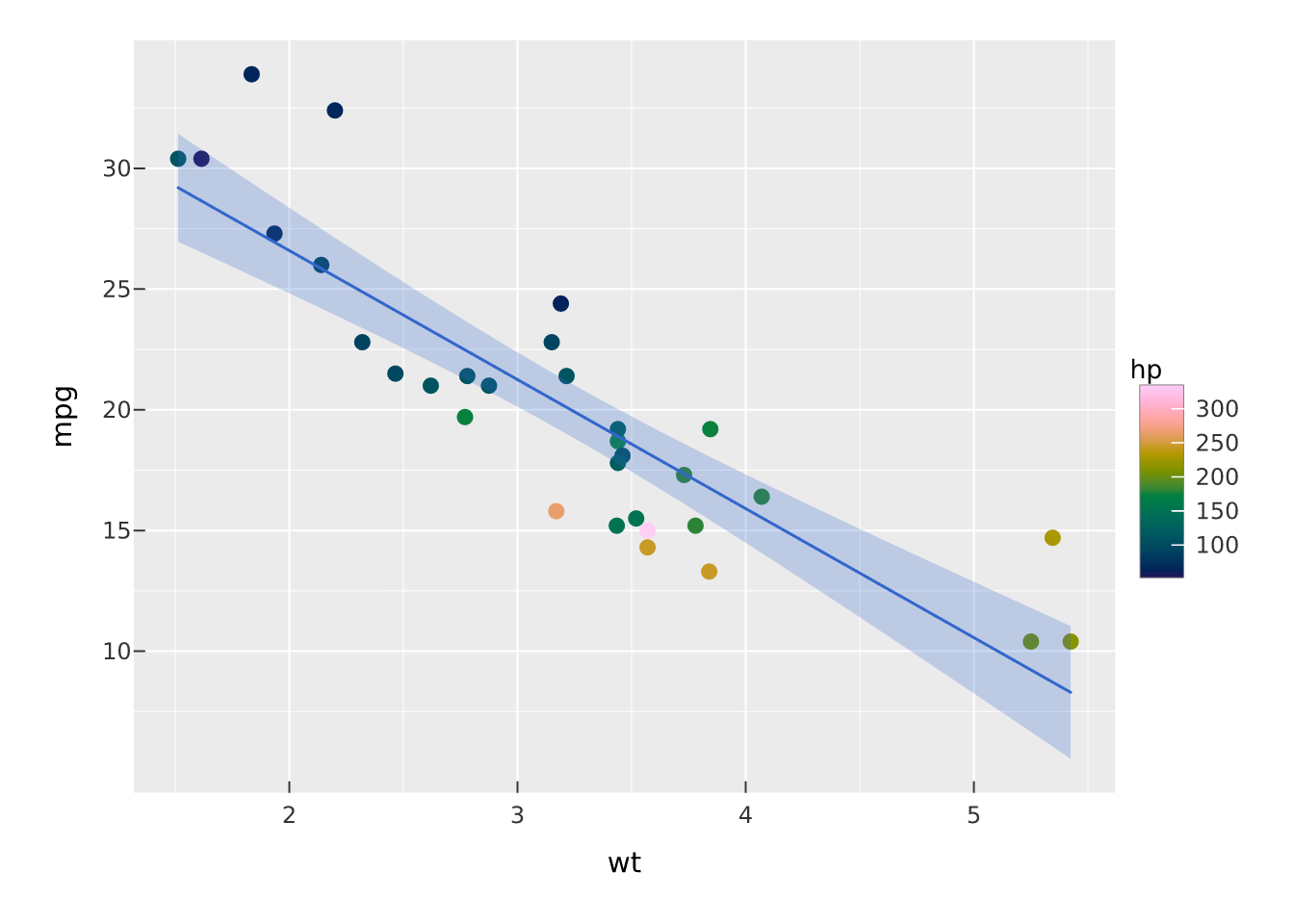

p

Or write it to a file with render_plot(). The format follows the file extension, and because the scene is resolution-independent, .svg and .pdf are exact at any size while .png honours the plot’s dpi.

render_plot(p, "cars.png")
render_plot(p, "cars.svg")
render_plot(p, "cars.pdf")

To go deeper into the backend the compiler targets, see the vellum documentation. To turn a compiled scene into an interactive widget, see vellumwidget.
