Placement: repelling labels, finding room, outlining groups

Source: vignettes/placement.Rmd
placement.Rmd

Overlapping labels are the most common defect in a data graphic, and the hardest to fix from above the engine — because fixing them needs to know where everything ended up, which is information that normally only exists after drawing.

vellum resolves layout before it draws, so it knows. This article covers the three things that follow from that: moving labels apart, finding somewhere to put one thing, and outlining a group.

Repelling labels

n <- 26
x <- runif(n) * 0.9 + 0.05
y <- runif(n) * 0.85 + 0.08

scatter <- function() {
  vl_scene(6, 3.4, dpi = 96, bg = "white") |>
    draw(points_grob(x, y, size = vl_unit(2, "mm"),
                     gp = vl_gpar(fill = "#C0392B", col = NA), name = "pts")) |>
    draw(text_grob(paste0("station ", seq_len(n)), x = x, y = y,
                   gp = vl_gpar(fontsize = 8), name = "lab"))
}

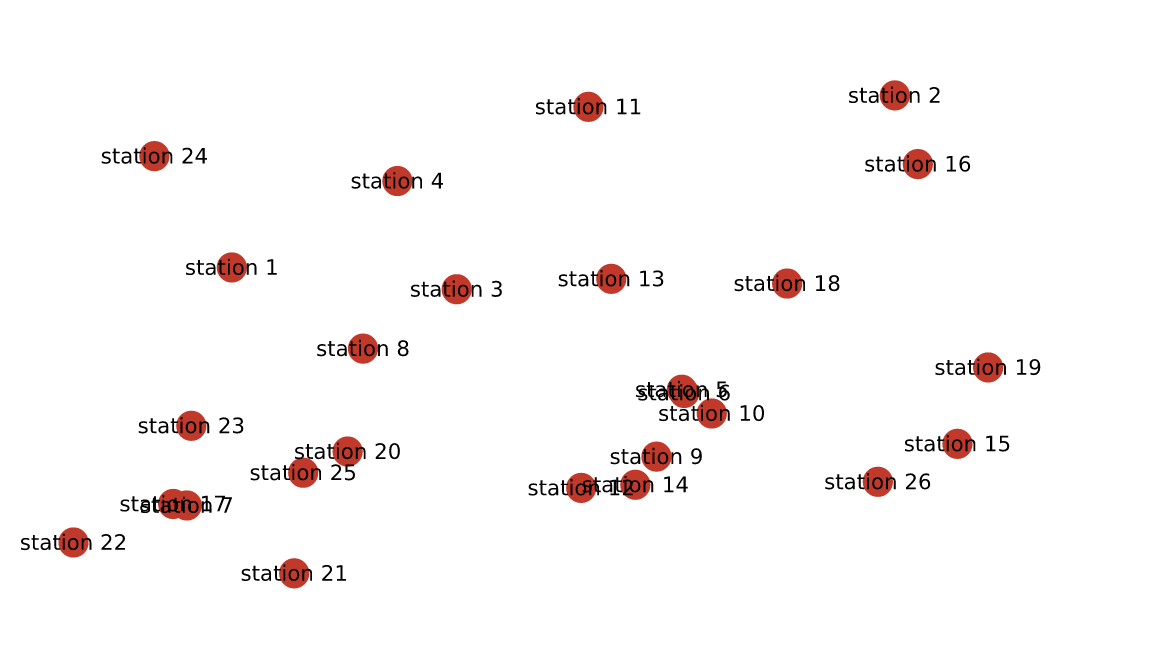

display(scatter())

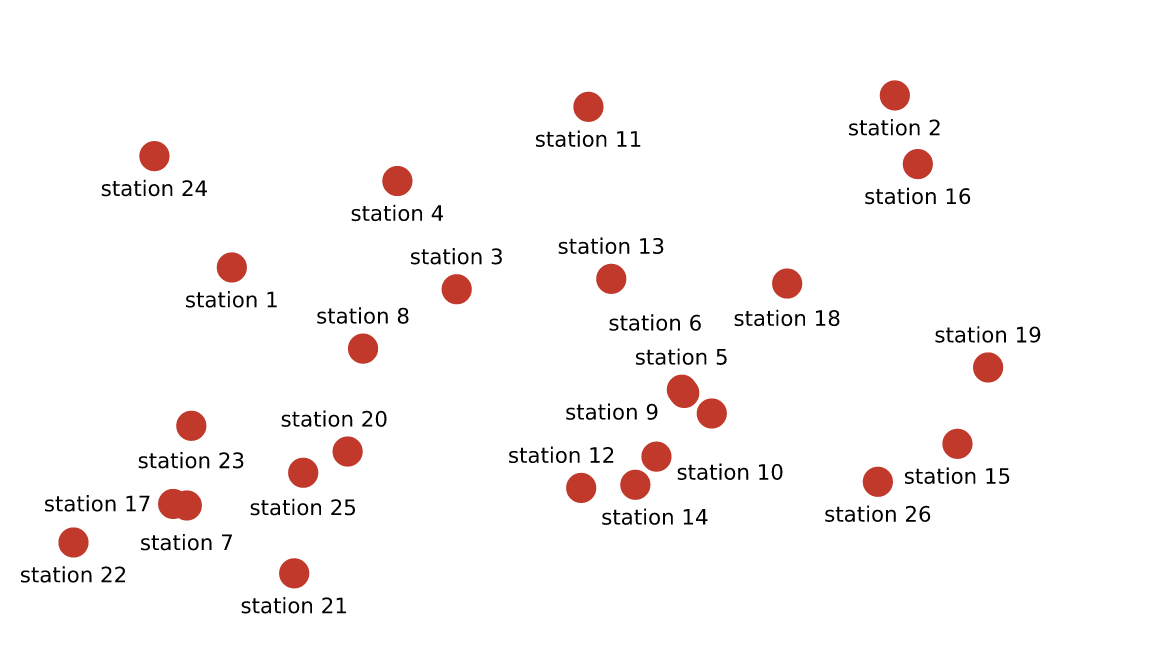

display(vl_repel(scatter(), padding = 0.6))

Every label is legible, none has left its point, and nothing was dropped.

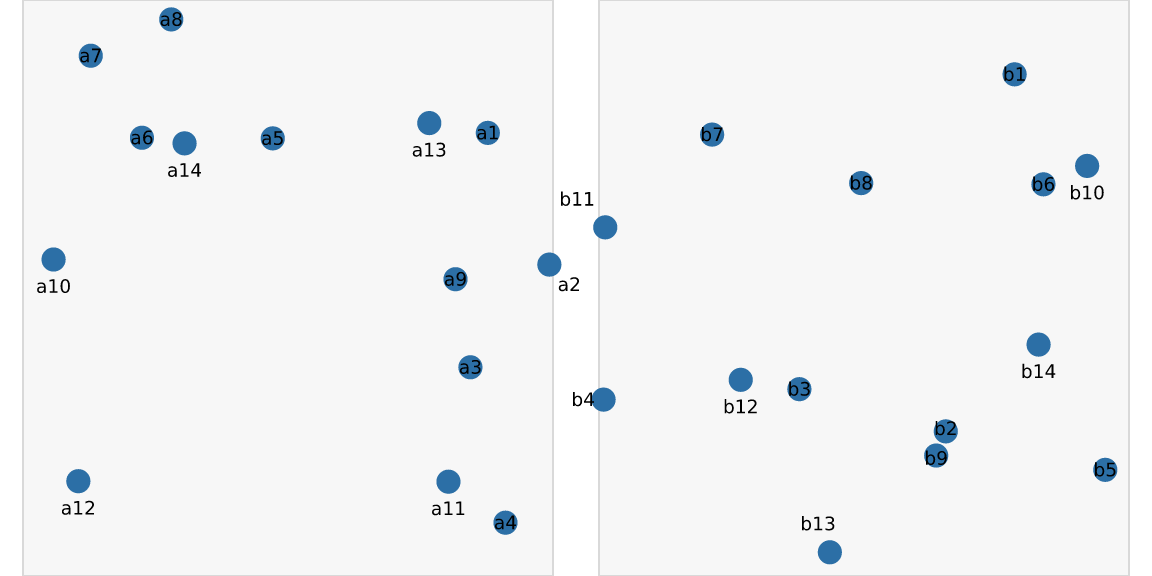

It does not care what coordinate system you used

This is the part worth understanding, because it is what makes the feature different from doing the same thing a layer up.

The solve happens in device pixels, over boxes that have already resolved. The answer is then applied as an absolute millimetre offset on top of each label’s existing coordinate — vellum’s compound native + mm unit. So the label keeps its data anchor and moves by exactly the distance the solver asked for, whatever produced that anchor.

A label in native units inside a panel with a scale of 0..100 on one axis and 0..0.01 on the other moves by the same mechanism as one in npc on the page. Panels are not solved one at a time; they are all just boxes.

two <- vl_scene(6, 3, dpi = 96, bg = "white")
for (i in 1:2) {
  px <- runif(14) * 100
  py <- runif(14) * 0.01
  two <- two |>
    push(vl_viewport(name = paste0("p", i), x = c(0.25, 0.75)[i], width = 0.46,
                     xscale = c(0, 100), yscale = c(0, 0.01))) |>
    draw(rect_grob(gp = vl_gpar(fill = "grey97", col = "grey85"))) |>
    draw(points_grob(vl_unit(px, "native"), vl_unit(py, "native"),
                     size = vl_unit(1.6, "mm"),
                     gp = vl_gpar(fill = "#2C6FA6", col = NA))) |>
    draw(text_grob(paste0(c("a", "b")[i], seq_len(14)),
                   x = vl_unit(px, "native"), y = vl_unit(py, "native"),
                   gp = vl_gpar(fontsize = 7), name = paste0("lab", i))) |>
    pop()
}
display(vl_repel(two, padding = 0.5))

The solve on its own

vl_repel() is vl_place() plus applying the answer. vl_place() hands you the answer instead:

sol <- vl_place(scatter(), padding = 0.6)
head(sol[, c("name", "index", "dx", "dy", "resolved")])
#>   name index          dx        dy resolved
#> 1  lab     1  0.00000000 -4.295429     TRUE
#> 2  lab     2  0.00000000 -4.295429     TRUE
#> 3  lab     3  0.00000000  4.295429     TRUE
#> 4  lab     4  0.00000000 -4.295429     TRUE
#> 5  lab     5 -0.02685361  4.295429     TRUE
#> 6  lab     6 -3.82683432  9.238795     TRUE

dx/dy are millimetres, and resolved says whether that label ended up clear of everything.

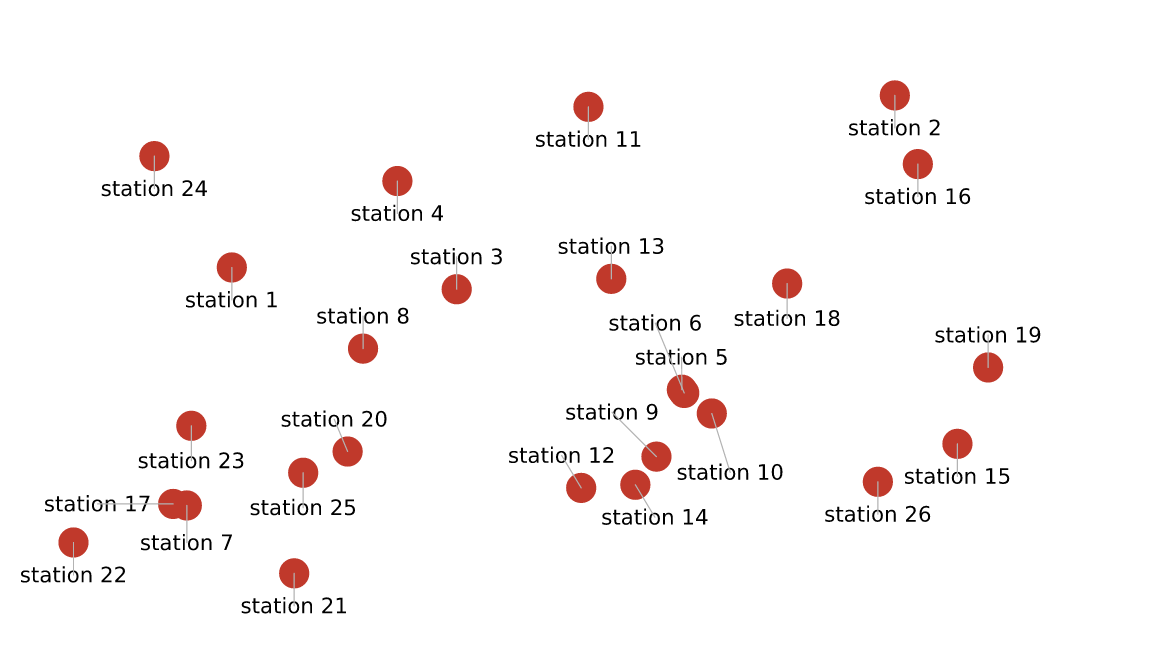

Two reasons to want this rather than the finished scene. The first is leader lines — the shift is a plain offset, so drawing one is arithmetic:

moved <- which(abs(sol$dx) + abs(sol$dy) > 1)

# Place the labels FIRST, then draw the leaders onto the result.
placed <- vl_repel(scatter(), padding = 0.6)

display(
  placed |>
    draw(segments_grob(
      x0 = vl_unit(x[moved], "npc"), y0 = vl_unit(y[moved], "npc"),
      x1 = vl_unit(x[moved], "npc") + vl_unit(sol$dx[moved], "mm"),
      y1 = vl_unit(y[moved], "npc") + vl_unit(sol$dy[moved], "mm"),
      gp = vl_gpar(col = "grey70", lwd = 0.6)
    ))
)

The order matters, and getting it wrong is instructive. Drawing the leaders before repelling puts them in the scene that the solver then looks at — and a solver avoids whatever is in the scene. Worse, each leader lies exactly along the path its label wanted to take, and vl_place() works on bounding boxes, so a diagonal segment blocks the whole rectangle spanning it. The labels get pushed back the way they came: measured on this figure, the median leader ended up 146° from the label’s actual displacement, with half of them pointing essentially backwards.

Placing first and annotating afterwards avoids the whole problem, because vl_repel() and the sol above are the same solve — so the leaders land exactly on the labels. The general rule: anything you add to a scene becomes an obstacle to a later solve.

The second is that resolved = FALSE is a decision point. On a genuinely crowded page some labels cannot be placed, and the useful responses — drop this one, abbreviate it, shrink the font, show it on hover — all depend on knowing what the labels mean. vellum reports the failure and stops there rather than guessing; that call belongs to the layer above.

How it works, and where it gives up

Relaxation, then repair. Overlaps push labels apart along the axis of least separation; labels that are clear are eased back toward their anchor. That alone is a local method, and local methods get stuck — a label slides out of the collision it is in and never considers that the far side of its anchor was free the whole time. So a second pass takes every label still colliding and tries candidate positions on a ring around its anchor, nearest first, taking the first that is clear. On a crowded scatter that pass is the difference between most overlaps remaining and almost none.

max_shift bounds how far a label may travel (10 mm by default), so labels stay near what they label rather than solving the puzzle by scattering.

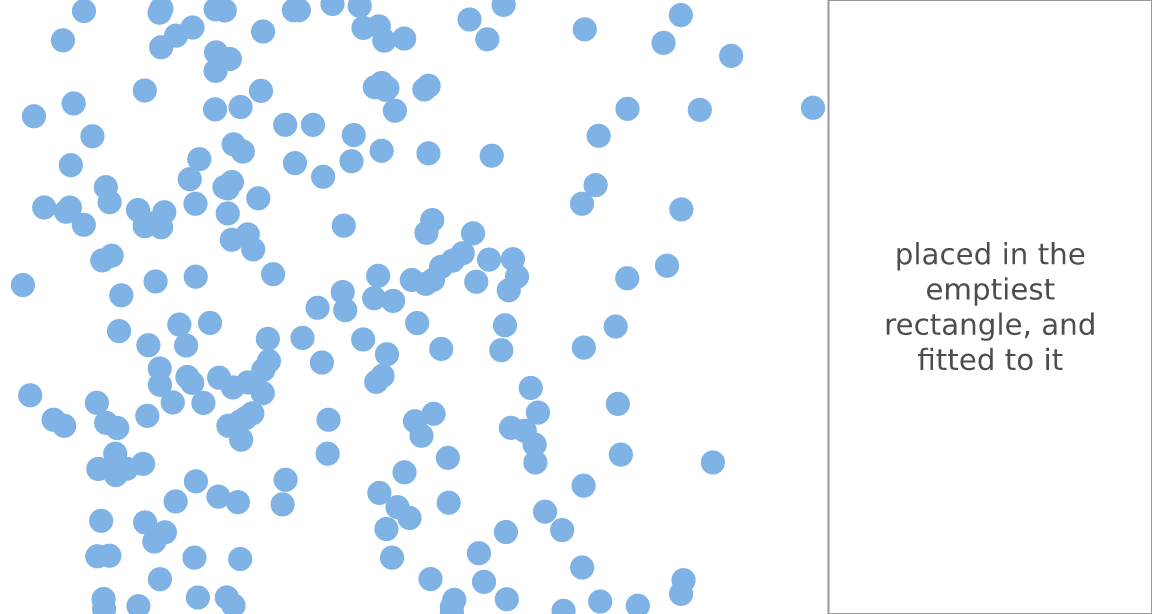

Where is there room?

The other placement question. Not “how do I move these apart” but “where can this one thing go” — which is what automatic legend and annotation placement needs.

cloud <- vl_scene(5, 3.2, dpi = 96, bg = "white") |>
  draw(points_grob(rbeta(220, 2, 5), runif(220), size = vl_unit(1.6, "mm"),
                   gp = vl_gpar(fill = "#7FB2E5", col = NA)))
gap <- vl_empty_region(cloud, grid = 260)
round(gap, 3)
#>    x0    y0    x1    y1
#> 0.719 0.000 1.000 1.000

That composes neatly with width-constrained text (vignette("typography")): the region also comes back in millimetres, which is exactly the absolute measure text_grob(width=) wants — so an annotation can be fitted to the gap that was just found, rather than to a width guessed in advance.

mm <- vl_empty_region(cloud, grid = 260, unit = "mm")
display(
  cloud |>
    draw(rect_grob(x = mean(gap[c("x0", "x1")]), y = mean(gap[c("y0", "y1")]),
                   width = gap[["x1"]] - gap[["x0"]],
                   height = gap[["y1"]] - gap[["y0"]],
                   gp = vl_gpar(fill = "#FFFFFFCC", col = "grey60"))) |>
    draw(text_grob("placed in the emptiest rectangle, and fitted to it",
                   x = mean(gap[c("x0", "x1")]), y = mean(gap[c("y0", "y1")]),
                   align = "centre", fit = TRUE,
                   width = vl_unit(mm[["x1"]] - mm[["x0"]] - 4, "mm"),
                   height = vl_unit(mm[["y1"]] - mm[["y0"]] - 4, "mm"),
                   gp = vl_gpar(fontsize = 11, col = "grey30")))
)

Occupancy is rasterised onto a grid, so the answer is exact on that grid. That is a deliberate approximation — the exact maximal empty rectangle over n boxes is superquadratic, and nothing is placed to sub-pixel tolerance. Boxes round outward, so the result is conservative: it will never claim space that is in fact occupied. Raise grid to trade time for precision.

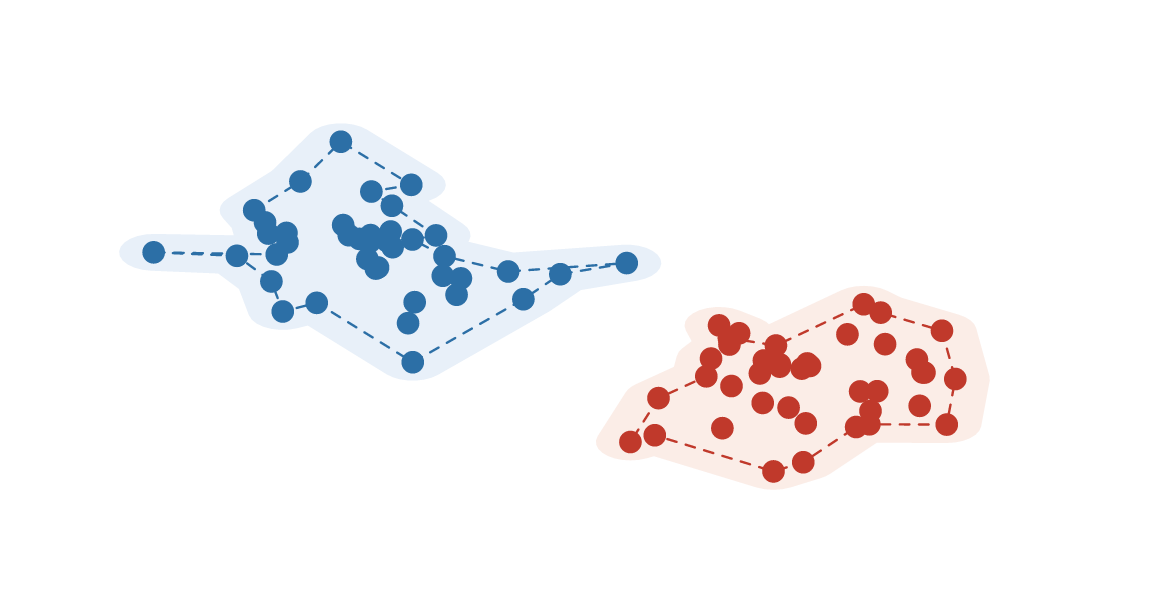

Outlining a group

vl_hull() and vl_buffer() are here rather than with the other geometry because exclusion zones are what label placement wants them for.

grp <- data.frame(
  x = c(rnorm(40, 0.32, 0.07), rnorm(40, 0.7, 0.06)),
  y = c(rnorm(40, 0.6, 0.09), rnorm(40, 0.38, 0.07)),
  g = rep(1:2, each = 40)
)
s <- vl_scene(5, 3.2, dpi = 96, bg = "white")
for (g in 1:2) {
  p <- grp[grp$g == g, ]
  h <- vl_hull(p$x, p$y, concavity = 4)
  b <- vl_buffer(h$x, h$y, 0.03)
  s <- s |>
    draw(polygon_grob(b$x, b$y,
                      gp = vl_gpar(fill = c("#E8F0F9", "#FBEDE7")[g], col = NA))) |>
    draw(polygon_grob(h$x, h$y,
                      gp = vl_gpar(fill = NA, col = c("#2C6FA6", "#C0392B")[g],
                                   lwd = 1.2, lty = "dashed"))) |>
    draw(points_grob(p$x, p$y, size = vl_unit(1.5, "mm"),
                     gp = vl_gpar(fill = c("#2C6FA6", "#C0392B")[g], col = NA)))
}
display(s)

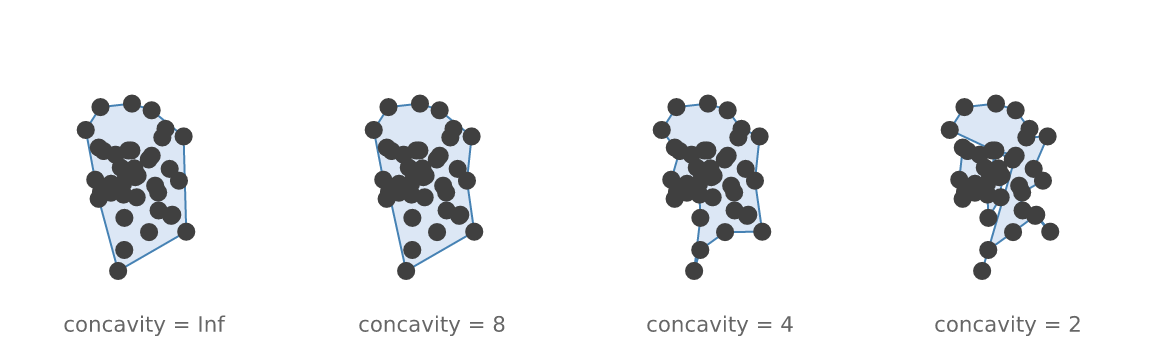

concavity runs the opposite way to what the name suggests: larger is more convex. Inf (the default) is exactly the convex hull, 8 follows the points loosely, 4 is a good tight outline, and below about 3 the boundary starts threading between interior points and crossing itself.

p <- data.frame(x = rnorm(40, 0.5, 0.1), y = rnorm(40, 0.5, 0.12))
row <- vl_scene(6, 1.8, dpi = 96, bg = "white")
cs <- c(Inf, 8, 4, 2)
for (i in seq_along(cs)) {
  h <- vl_hull(p$x, p$y, concavity = cs[i])
  row <- row |>
    push(vl_viewport(x = (i - 0.5) / 4, width = 0.25)) |>
    draw(polygon_grob(h$x, h$y, gp = vl_gpar(fill = "#DCE7F5", col = "steelblue"))) |>
    draw(points_grob(p$x, p$y, size = vl_unit(1.2, "mm"),
                     gp = vl_gpar(fill = "grey25", col = NA))) |>
    draw(text_grob(paste0("concavity = ", cs[i]), y = 0.06,
                   gp = vl_gpar(fontsize = 8, col = "grey40"))) |>
    pop()
}
display(row)

Self-intersection at low concavity is inherent to the method, not a defect: a boundary that threads between interior points has to cross itself eventually. The same is true of buffering a concave ring — repairing either is a boolean union, which vellum does not have yet.
