Render quality: accessibility, crisp edges, group effects

Source: vignettes/render-quality.Rmd
render-quality.Rmd

Three things that decide whether a figure reads correctly rather than merely being correct: whether its colours survive a reader’s vision, whether its thin lines survive the pixel grid, and whether it can carry the depth cues designers reach for.

Colour-vision simulation

Roughly one man in twelve has some form of colour-vision deficiency, and the red/green pair that most default palettes open with is exactly the one that fails. cvd = re-renders a scene as such a reader would see it — on render(), scene_png() and scene_raster().

pal <- c(red = "#D62728", green = "#2CA02C", blue = "#1F77B4",
         orange = "#FF7F0E", purple = "#9467BD")

swatches <- local({
  s <- vl_scene(6, 1.1, dpi = 96, bg = "white")
  n <- length(pal)
  for (i in seq_len(n)) {
    s <- draw(s, rect_grob(x = (i - 0.5) / n, width = 0.9 / n, height = 0.6, y = 0.6,
                           gp = vl_gpar(fill = pal[[i]], col = NA)))
    s <- draw(s, text_grob(names(pal)[i], x = (i - 0.5) / n, y = 0.12,
                           gp = vl_gpar(fontsize = 9, col = "grey30")))
  }
  s
})

# `scene_raster()` gives pixels back, so a simulation can be shown inline.
show_cvd <- function(scene, kind) {
  a <- scene_raster(scene, cvd = kind)
  m <- matrix(grDevices::rgb(a[1, , ], a[2, , ], a[3, , ], maxColorValue = 255),
              nrow = dim(a)[2])
  grid::grid.newpage()
  grid::grid.raster(as.raster(t(m)), interpolate = FALSE)
}

Normal vision:

show_cvd(swatches, "none")

Deuteranopia, the common form:

show_cvd(swatches, "deuteranopia")

Red and green have become the same colour. If those two encoded different series, that plot no longer works.

The useful part is not the picture but the number. Because scene_raster() returns pixels, you can measure separability rather than eyeball it:

sep <- function(a, b, kind) {
  r <- scene_raster(swatches, cvd = kind)
  at <- function(i) as.integer(r[1:3, round((i - 0.5) / length(pal) * dim(r)[2]), 60])
  sum(abs(at(a) - at(b)))
}
vapply(c("none", "protanopia", "deuteranopia", "tritanopia", "achromatopsia"),
       function(k) sep(1, 2, k), 0)
#>          none    protanopia  deuteranopia    tritanopia achromatopsia
#>           295           136            48           485            84

achromatopsia doubles as a greyscale-printing check.

That measurement is worth doing by hand when you want the number for a specific pair. For the general question — does any pair in this palette collapse? — vl_lint()’s cvd_collision rule asks it over every colour in the scene, using these same matrices and comparing in Oklab rather than in raw channel distance:

vl_lint(swatches, rules = "cvd_collision")
#> 2 lint findings (2 warnings):
#> ✖ [cvd_collision] rect: #D62728 and #2CA02C look the same under deuteranopia
#> ✖ [cvd_collision] rect: #1F77B4 and #9467BD look the same under deuteranopia

And when the simulation says your palette fails, the fix is texture. Encoding a category by hatch angle as well as hue survives any of these simulations, and greyscale printing too — see vl_hatch() in vignette("scene-and-paint").

The simulation uses the Machado et al. (2009) matrices applied in linear light — the common shortcut of applying them in sRGB shifts lightness as well as hue. It is a raster post-pass: vector formats have no pixels to transform, and render() warns rather than quietly writing an unsimulated file.

Crisp gridlines

A one-pixel horizontal rule whose centre lands at a fractional coordinate covers half of each of two pixel rows, and antialiasing renders it as two grey rows instead of one black one. Multiply by every gridline and this is why plots often look slightly muddy on screen.

crisp = TRUE snaps axis-parallel strokes onto the pixel grid:

rule <- function(...) {
  vl_scene(4, 0.5, dpi = 96, bg = "white") |>
    draw(segments_grob(0.05, 0.5013, 0.95, 0.5013,
                       gp = vl_gpar(col = "black", lwd = 1, ...)))
}
# The darkest pixel in the column tells you whether the line is solid.
c(default = min(scene_raster(rule())[1, 100, ]),
  crisp = min(scene_raster(rule(crisp = TRUE))[1, 100, ]))
#> default   crisp
#>     112       0

A non-zero minimum means the darkest pixel in that column is still grey: the stroke is spread across two rows. Zero means it landed on one row, solid. (The exact default value depends on where the fractional coordinate falls, which is the problem.)

Diagonals are left alone — there is no grid to snap them to — and it only affects raster output, since a vector format has no pixel grid.

Set it once on a viewport and every rule inside inherits it:

push(vl_viewport(gp = vl_gpar(crisp = TRUE)))

The companion is antialias = FALSE, for the cases where soft edges are wrong rather than right: pixel art, QR codes, and heatmap cells that must tile without a seam.

tri <- function(aa) {
  vl_scene(1, 1, dpi = 96, bg = "white") |>
    draw(polygon_grob(c(0.1, 0.9, 0.5), c(0.1, 0.1, 0.9),
                      gp = vl_gpar(fill = "black", col = NA, antialias = aa)))
}
c(antialiased = length(unique(as.vector(scene_raster(tri(TRUE))[1, , ]))),
  aliased = length(unique(as.vector(scene_raster(tri(FALSE))[1, , ]))))
#> antialiased     aliased
#>           6           2

Two distinct values means pure black and pure white — no intermediate shades.

Group effects

blur and shadow are group effects: they act on a viewport’s contents composited as one layer. That is the important distinction. Overlapping shapes inside the viewport cast a single shadow together, rather than each casting one onto the others.

s <- vl_scene(6, 2, dpi = 96, bg = "grey97")
for (spec in list(
  list(x = 0.14, args = list()),
  list(x = 0.38, args = list(shadow = vl_shadow(dx = 2, dy = 3, blur = 4))),
  list(x = 0.62, args = list(blur = 2.5)),
  list(x = 0.86, args = list(shadow = vl_shadow(dx = 0, dy = 0, blur = 8, col = "#1F77B4")))
)) {
  s <- push(s, do.call(vl_viewport, c(list(x = spec$x, width = 0.2, height = 0.62), spec$args)))
  s <- draw(s, roundrect_grob(r = 0.14, gp = vl_gpar(fill = "steelblue", col = NA)))
  s <- pop(s)
}
display(s)

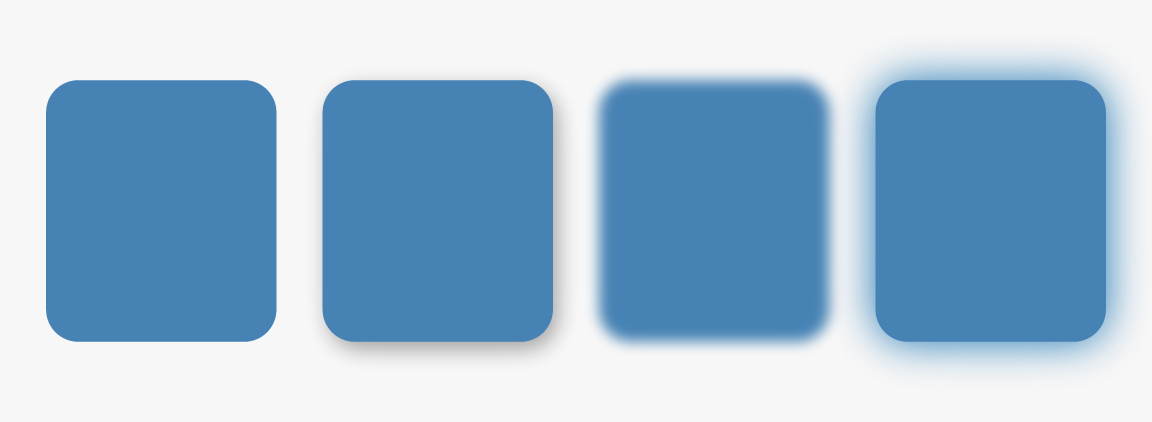

Left to right: plain, drop shadow, blur, and a glow — which is simply a shadow with no offset, so it needs no separate function.

Per backend: the raster path convolves (three box passes, the standard Gaussian approximation); SVG emits native feGaussianBlur / feDropShadow, so the group stays vector and the viewer does the work; PDF has no filter model at all, and says so through vellum’s degradation warning rather than silently rasterising your vector output.

render(s, "cards.pdf")
#> Warning: a group blur/shadow (PDF has no filter model; the group is drawn unfiltered)

That warning is the design principle at work: where a backend cannot honour something, it fails visibly.
