Scenes as values: saving, comparing, composing

Source: vignettes/scenes-as-values.Rmd
scenes-as-values.Rmd

A vellum scene is an immutable value describing what to draw. This article is about treating it as one: writing it to a file, fingerprinting it, comparing two of them, and nesting one inside another.

None of this needs a device, because none of it needs pixels.

plot_of <- function(fill = "steelblue", r = 0.3) {
  set.seed(1)
  vl_scene(4, 3, dpi = 96, bg = "white") |>
    push(vl_viewport(name = "panel", xscale = c(0, 1), yscale = c(0, 1))) |>
    draw(rect_grob(gp = vl_gpar(fill = "grey96", col = "grey70"))) |>
    draw(points_grob(runif(60), runif(60), gp = vl_gpar(fill = fill, col = NA))) |>
    draw(circle_grob(r = r, name = "marker",
                     gp = vl_gpar(fill = NA, col = "grey20", lwd = 2))) |>
    pop()
}

Saving a scene

scene_write() and scene_read() persist a built scene and rebuild it. .rds needs nothing; .json is a portable text format and needs jsonlite.

f <- tempfile(fileext = ".rds")
scene_write(plot_of(), f)
identical(as_scene_spec(scene_read(f)), as_scene_spec(plot_of()))
#> [1] TRUE

What this is for: caching a built scene without re-running the code that built it, sending one to a worker process to render, and keeping a reproducible intermediate between the code and the pixels.

Underneath is as_scene_spec(), which turns the scene into a plain nested list of R vectors, and from_scene_spec(), which rebuilds it. The conversion is generic over the S7 property model rather than written per grob type, so a grob added to vellum later serializes with no change to the serializer.

This sits one level below vellumplot’s plot spec, and the two compose rather than compete. A plot spec is portable and re-renderable at any size; a scene spec is the resolved artifact — the grobs, units and viewports as they will actually be drawn. Keep the plot spec to re-render, keep the scene spec to reproduce exactly this scene.

One deliberate omission: the build-time nid token is not serialized. It is a monotonic counter used by the render cache, and keeping it would make two identical scenes built separately serialize — and therefore hash and diff — differently, which is the opposite of what a fingerprint is for.

Fingerprinting

c(
  same_content = scene_hash(plot_of()) == scene_hash(plot_of()),
  changed_fill = scene_hash(plot_of()) == scene_hash(plot_of(fill = "tomato"))
)
#> same_content changed_fill
#>         TRUE        FALSE

Two independently-built scenes with the same content hash the same; any change to what is drawn changes the hash. That makes it usable as a cache key, and as a test assertion that a refactor did not alter a figure.

Comparing

scene_hash() answers whether something changed. scene_diff() answers what:

scene_diff(plot_of(), plot_of(fill = "tomato", r = 0.42))
#> 2 differences:
#> • ~ root$children[1]$children[2]$gp$fill: steelblue -> tomato
#> • ~ root$children[1]$children[3]$r: 0.3npc -> 0.42npc

This is a better basis for visual-regression testing than comparing rendered images, for one specific reason: an image diff is sensitive to the font stack. Run the same code on two machines with different fonts and the pixel differences swamp the change you were looking for. A structural diff compares what was asked for, and is unaffected.

test_that("the refactor did not change the figure", {
  expect_equal(nrow(scene_diff(reference_scene(), my_plot())), 0L)
})

Composing

Because a scene has a known resolved size, nesting one inside another is a graft rather than a re-render. scene_inset() splices the guest’s grobs under a viewport of the host:

overview <- plot_of(fill = "grey65", r = 0.45)
detail <- vl_scene(1, 1) |>
  push(vl_viewport(xscale = c(0, 1), yscale = c(0, 1))) |>
  draw(rect_grob(gp = vl_gpar(fill = "white", col = "grey40"))) |>
  draw(points_grob(runif(30) * 0.4 + 0.3, runif(30) * 0.4 + 0.3,
                   gp = vl_gpar(fill = "tomato", col = NA))) |>
  pop()

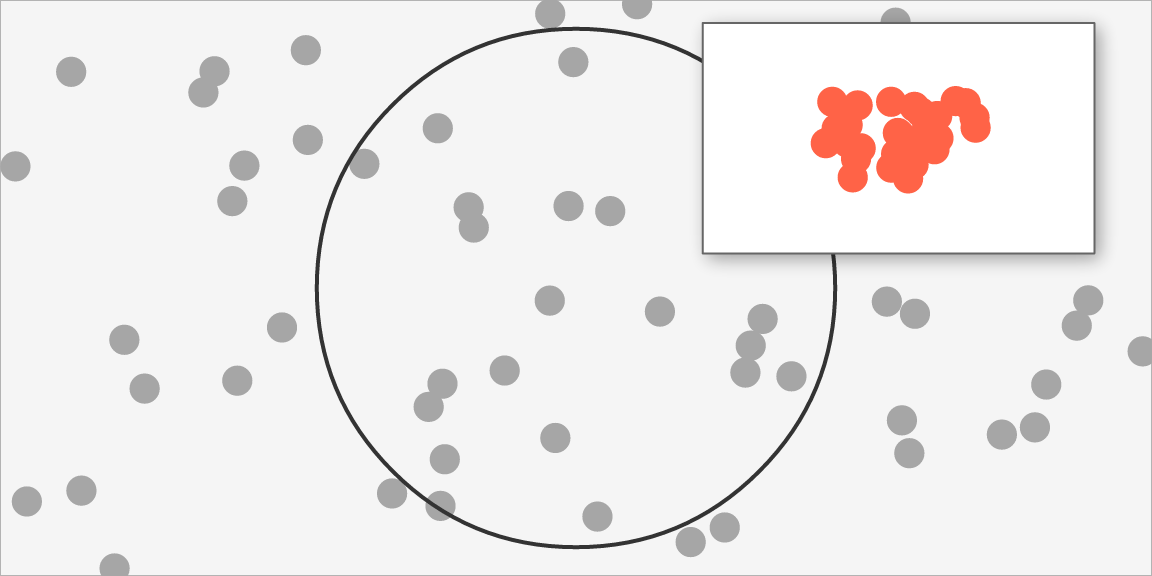

display(
  scene_inset(overview, detail, x = 0.78, y = 0.76, width = 0.34, height = 0.4,
              name = "inset", shadow = vl_shadow(dx = 2, dy = 2, blur = 3))
)

The result is an ordinary scene. The inset is an addressable node, so it can be found with node_names(), edited with edit_node(), inset into something else, or serialized like anything else.

Two things to know. The guest’s page size, background and dpi are not carried over — it becomes a region of the host, which owns those. And the guest’s npc coordinates become relative to the region, so a guest built on a square page and dropped into a wide region will stretch; match the aspect, or build the guest at the aspect you want.

What vellum deliberately does not decide is the policy: whether panel edges should align across composed plots, whether axes should be shared. Those are properties of how a grammar decomposes a figure, so they belong in a layer above. What the engine owes that layer is the ability to nest scenes at all.
