Coordinate systems — coord_cartesian • vellumplot

coord_cartesian() is the default Cartesian system; pass xlim/ylim to zoom the view (out-of-range marks are clipped, not dropped — unlike a scale_*(limits=), which here behaves the same but is the data-scale's job). coord_flip() swaps the x and y axes, e.g. for horizontal bars. coord_fixed() / coord_equal() lock the aspect ratio so one data unit on the y axis occupies ratio times the physical length of one unit on x (the panel shrinks to fit and is centred). Coordinate limits take precedence over scale limits.

Usage

coord_cartesian(plot, xlim = NULL, ylim = NULL)

coord_flip(plot, xlim = NULL, ylim = NULL)

coord_fixed(plot, ratio = 1, xlim = NULL, ylim = NULL)

coord_equal(plot, ratio = 1, xlim = NULL, ylim = NULL)

Arguments

plot: A PlotSpec.
xlim, ylim: Length-2 view-window limits, or NULL to use the trained range.
ratio: Aspect ratio for coord_fixed(): the device length of one y unit relative to one x unit (default 1).

Value

The modified PlotSpec.

Examples

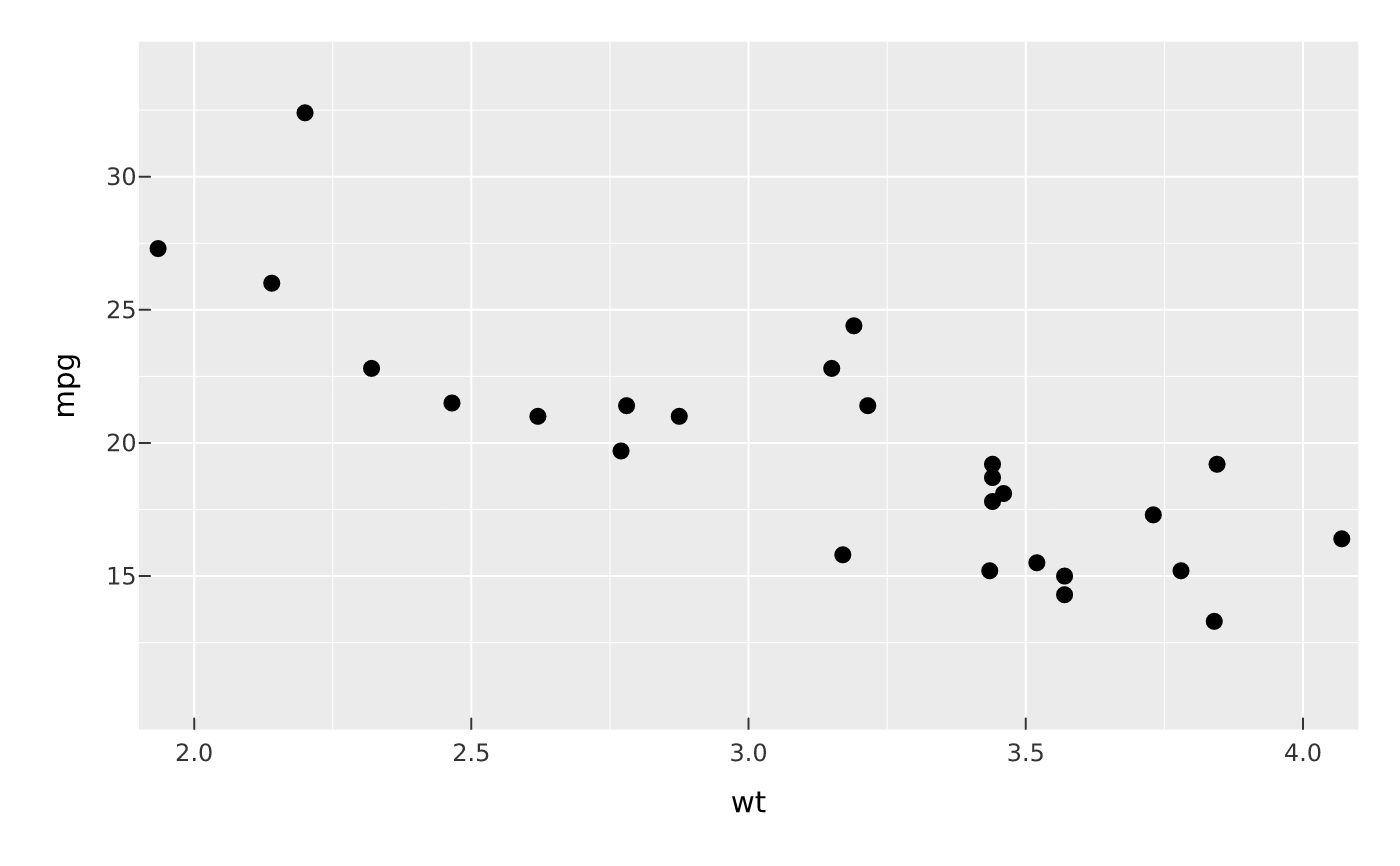

vplot(mtcars) |> mark_point(x = wt, y = mpg) |> coord_cartesian(xlim = c(2, 4))

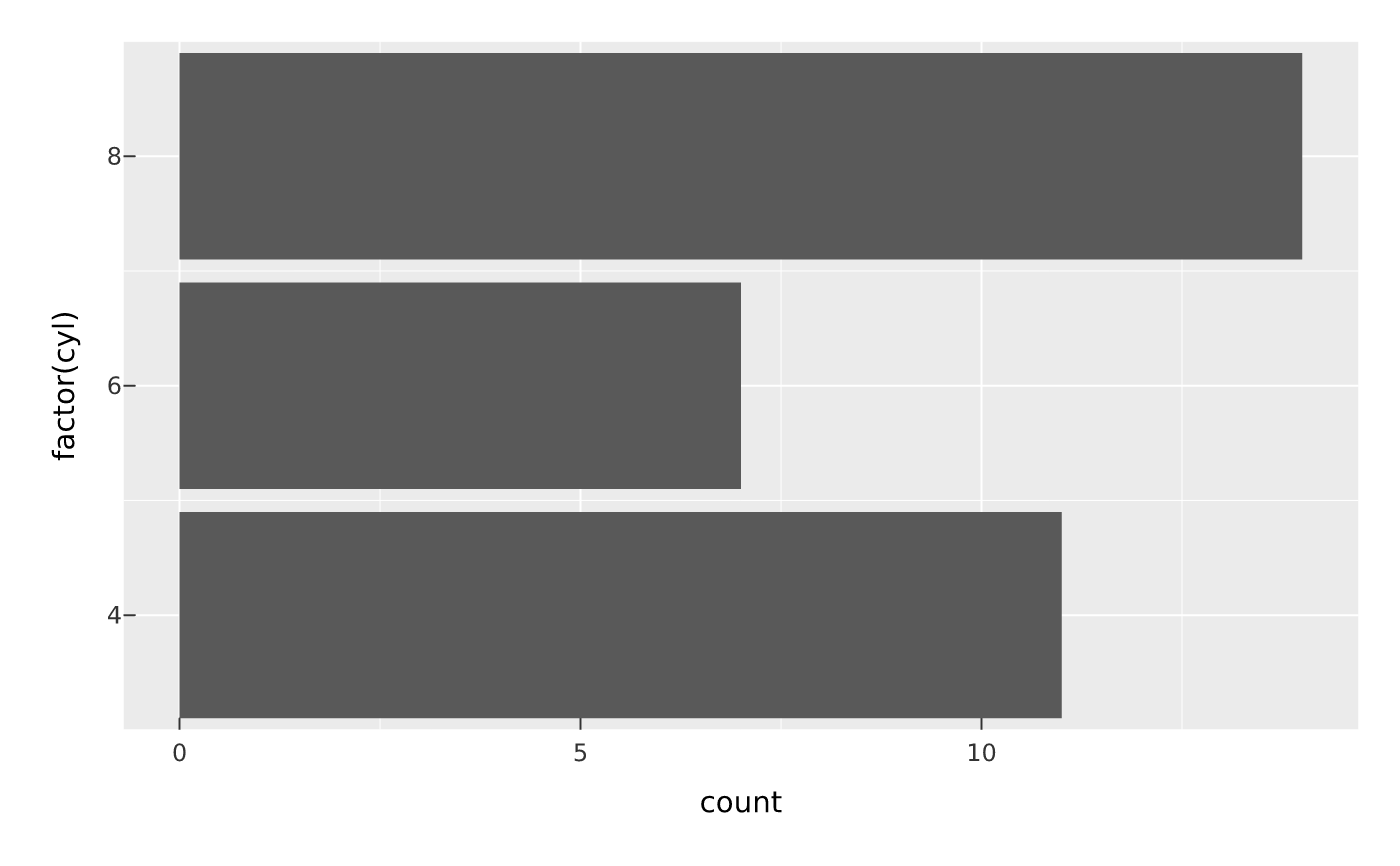

vplot(mtcars) |> mark_bar(x = factor(cyl)) |> coord_flip()

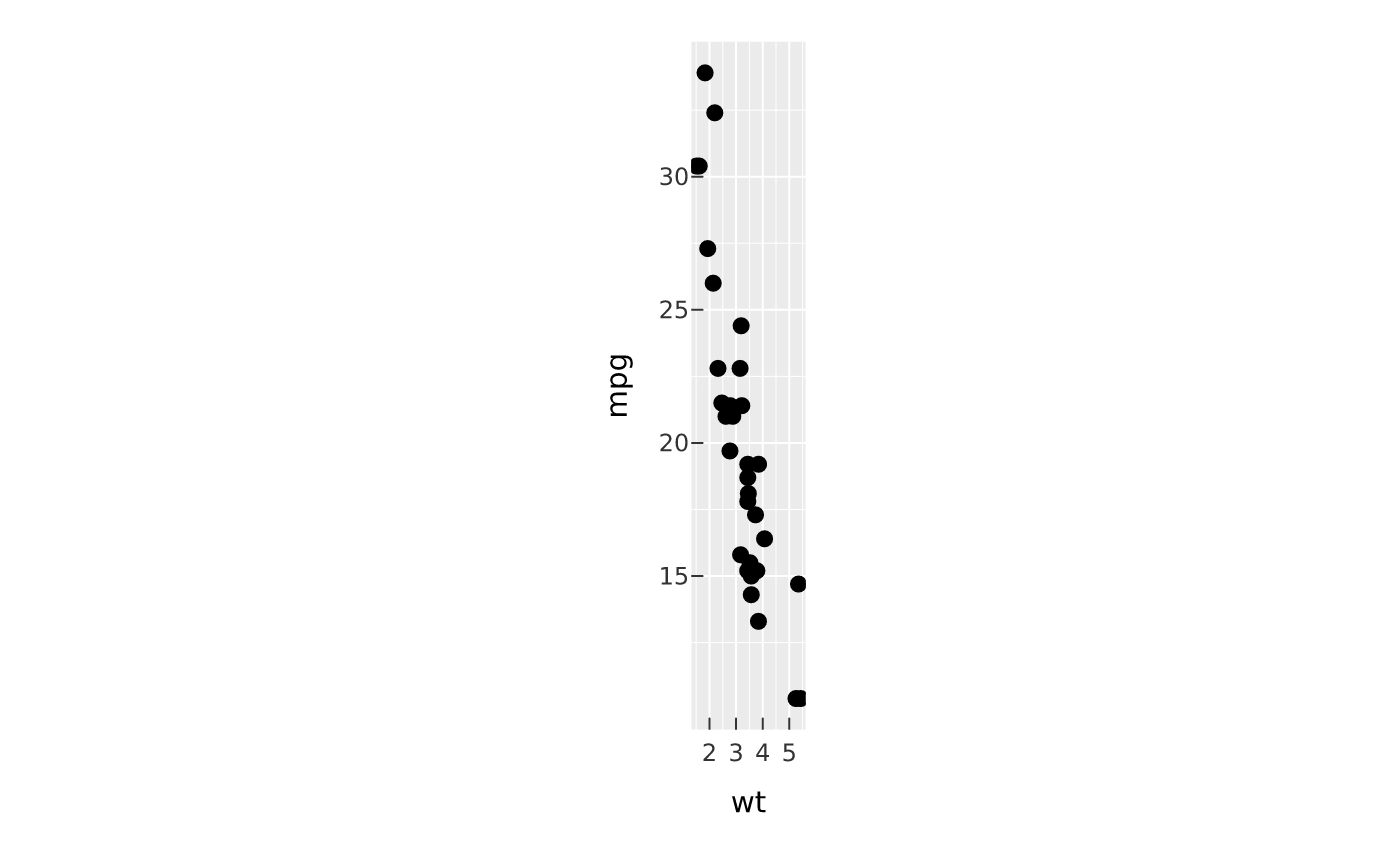

vplot(mtcars) |> mark_point(x = wt, y = mpg) |> coord_fixed()
