Define a layout area for design =

An area() is a rectangular block of grid cells (1-based, inclusive) that a sub-plot occupies. Pass a list of area()s (one per plot, in order) as concat(..., design = ) to place plots on an explicit, possibly spanning, grid.

Usage

area(t, l, b = t, r = l)

Arguments

t, l, b, r

Top, left, bottom, right cell indices (1-based, inclusive).

Value

An area spec.

Examples

a <- vplot(mtcars) |> mark_point(x = wt, y = mpg)
b <- vplot(mtcars) |> mark_point(x = hp, y = mpg)

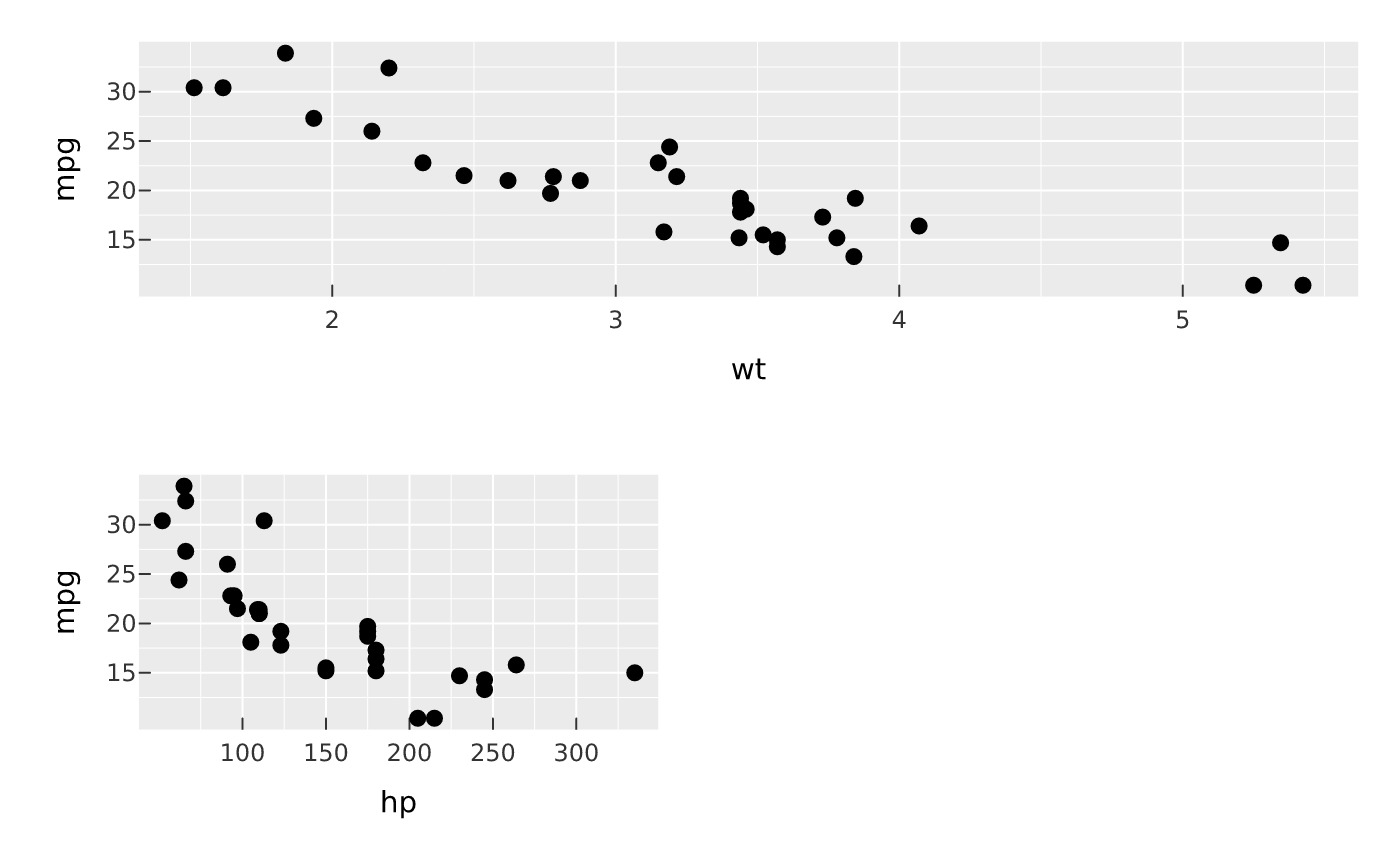

concat(a, b, design = list(area(1, 1, 1, 2), area(2, 1, 2, 1)))
