Dendrogram from a clustering

vdendrogram() turns a base hclust/dendrogram (e.g. from stats::hclust()) into a ready node-link dendrogram: leaves spread along a line, each merge drawn at its height, joined by right-angle brackets. It is a thin preset over vgraph(<clustering>, layout = "dendrogram") plus bracket edges and leaf labels; for full control, use that path and add marks yourself.

Usage

vdendrogram(
  x,
  direction = c("down", "up", "left", "right"),
  k = NULL,
  labels = TRUE,
  label_size = 5,
  width = 7,
  height = 5,
  dpi = 96
)

Arguments

x

An hclust or dendrogram object.

direction

Growth direction (leaves opposite the root): "down" (default; root at top), "up", "left", or "right".

k

Optionally cut the tree into k clusters (stats::cutree()) and colour branches and leaf labels by cluster; branches above the cut stay neutral. NULL (default) draws a single-colour tree.

labels

Draw the leaf labels? Default TRUE.

label_size

Leaf-label font size (points). Default 5; lower it for a tree with many leaves.

width, height, dpi

Page size (inches) and resolution.

Value

A PlotSpec.

See also

vgraph() for the general node-link path (layout = "dendrogram" or "unrooted").

Examples

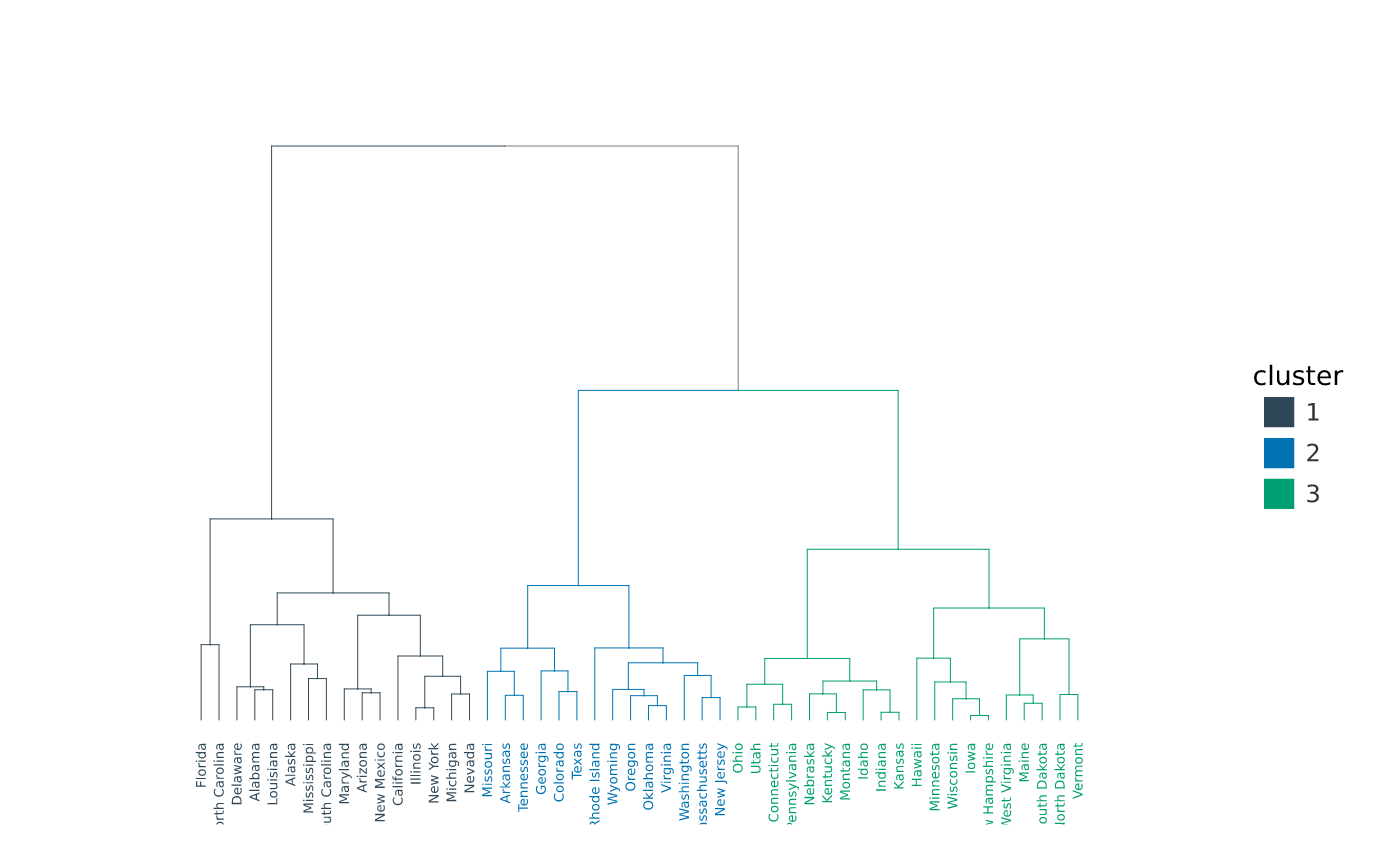

hc <- hclust(dist(USArrests))
vdendrogram(hc, k = 3)
