Contour lines from a grid

Marching squares over a matrix, chained into polylines. Use it for density isolines over a datashade() surface, level curves of a fitted model, or any other gridded field.

Usage

vl_contour(z, levels = NULL, xlim = c(0, 1), ylim = c(0, 1))

contour_grob(
  contours,
  close = TRUE,
  gp = vl_gpar(),
  name = NULL,
  vp = NULL,
  role = NULL
)

Arguments

z

A numeric matrix, with rows indexing x and columns indexing y — dim(z) == c(length(x), length(y)), the same convention as graphics::image(), graphics::contour() and graphics::persp(), and the shape outer(xs, ys, f) produces.

levels

Contour levels. Defaults to 5 levels spanning the finite range of z, excluding the extremes (a contour at the minimum or maximum is either empty or the whole boundary).

xlim, ylim

The coordinate range the grid spans. Cell centres are placed at the ends of these ranges, matching image().

contours

The data frame returned by vl_contour().

close

Draw closed contours as closed rings. TRUE (the default) joins the last point back to the first for contours vl_contour() marked closed; open contours are never closed.

gp, name, vp, role

Passed to each lines_grob() the contours become.

Value

A data frame with one row per point: level, id (a distinct contour line), x, y, and closed. Draw it with lines_grob(x, y, id = id).

Details

Segments are chained into continuous lines rather than returned loose. That matters beyond tidiness: an unchained contour restarts its dash pattern in every grid cell, cannot be simplified or measured, and cannot be filled. Closed rings come back closed.

Cells with a non-finite corner are skipped, so a contour breaks around missing data rather than being drawn through it.

Examples

# A ring contour around a Gaussian bump.
# rows index x, columns index y -- exactly what `outer(xs, ys, f)` gives.
g <- outer(seq(-3, 3, length.out = 60), seq(-3, 3, length.out = 60),
           function(x, y) exp(-(x^2 + y^2) / 2))
head(vl_contour(g, levels = c(0.2, 0.5, 0.8)))
#>   level id         x         y closed
#> 1   0.2  1 0.4745763 0.2019822   TRUE
#> 2   0.2  1 0.4628971 0.2033898   TRUE
#> 3   0.2  1 0.4576271 0.2039628   TRUE
#> 4   0.2  1 0.4406780 0.2067596   TRUE
#> 5   0.2  1 0.4237288 0.2106261   TRUE
#> 6   0.2  1 0.4067797 0.2156898   TRUE

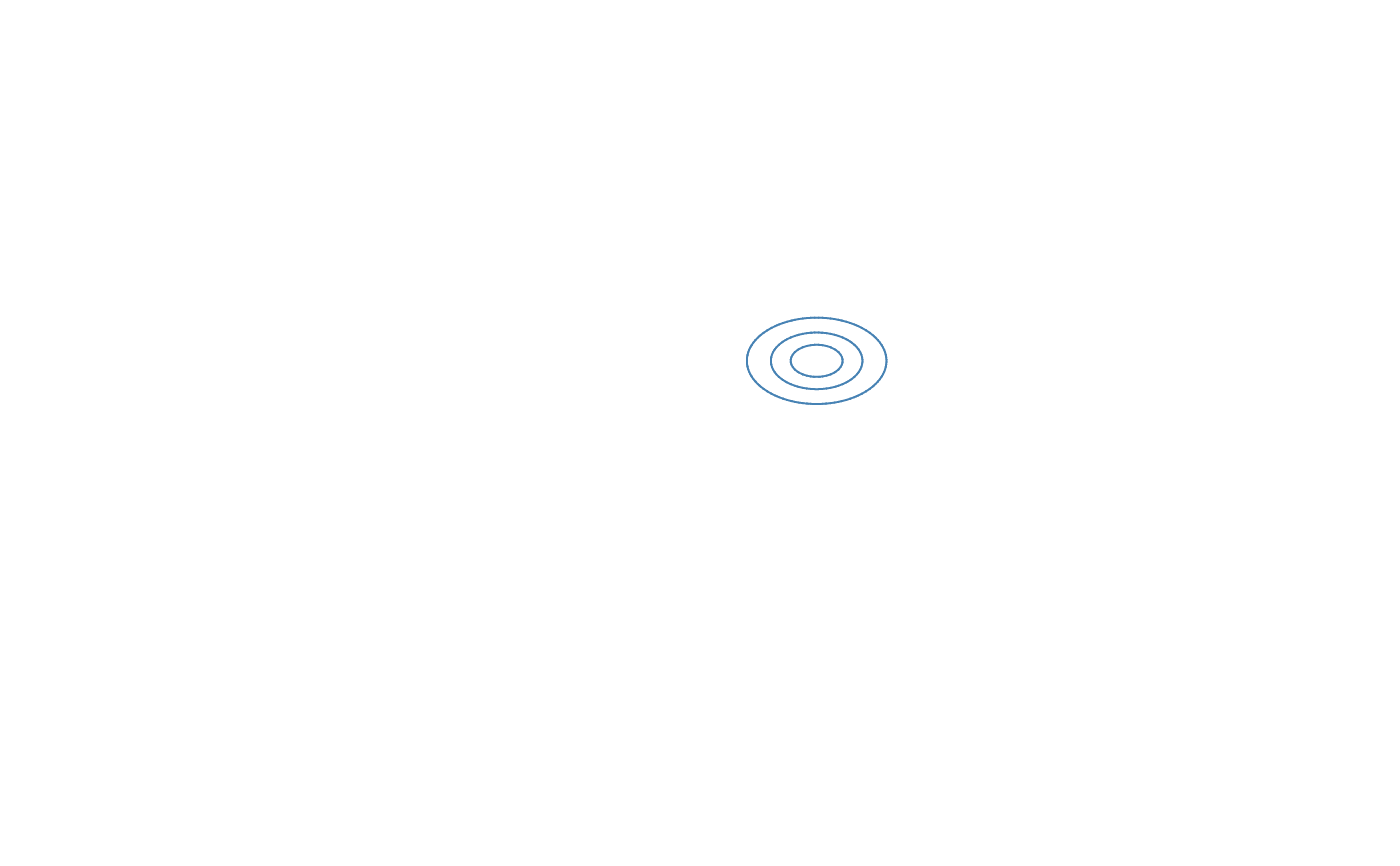

# Draw them: one grob per contour, because each is its own polyline.
# rows index x, columns index y -- exactly what `outer(xs, ys, f)` gives.
g <- outer(seq(-3, 3, length.out = 60), seq(-3, 3, length.out = 60),
           function(x, y) exp(-(x^2 + y^2) / 2))
vl_scene(3, 3, dpi = 96, bg = "white") |>
  push(vl_viewport(xscale = c(-3, 3), yscale = c(-3, 3))) |>
  draw(contour_grob(vl_contour(g, levels = c(0.2, 0.5, 0.8)),
                    gp = vl_gpar(col = "steelblue"))) |>
  pop() |>
  (\(s) s)()
