Freeze a stroke into a fillable outline

Converts the stroke of a line-like grob into a path_grob describing the region the stroke covers — the shape you would get by tracing round the drawn line. What was a one-pixel-wide path with a colour becomes an area with an interior, which is what you need in order to fill it with a gradient or a pattern, to send it to a cutting plotter or CNC tool, or to do geometry with it.

Usage

stroke_to_path(
  grob,
  width = 6,
  height = 4,
  dpi = 96,
  gp = NULL,
  lwd_profile = NULL,
  along = c("arclength", "vertex")
)

Arguments

grob: A lines_grob(), polygon_grob(), or path_grob(). Its coordinates must be resolvable without a viewport: npc, an absolute unit, or native (read against the root's default 0..1 scale, which is what a bare numeric means).
width, height: Page size in inches to resolve the geometry against.
dpi: Resolution to resolve the stroke width against.
gp: Optional vl_gpar() overriding the grob's own for the stroke parameters (lwd, lineend, linejoin, linemitre).
lwd_profile: Optional numeric vector of multipliers of lwd, describing how the width varies along the line: c(1, 0.2) tapers a ribbon to a fifth of its width, c(0, 1, 0) is a leaf, c(1, 0, 1) is pinched to nothing in the middle. Values must be finite and >= 0, and at least one must be positive; a zero is a legal width, not an error. A single value simply scales the width. NULL (default) is a constant width, and takes exactly the expansion this function has always performed.
along: How lwd_profile is positioned. "arclength" (default) spreads its values evenly along the drawn length of the stroke and interpolates between them, so the profile is independent of how the polyline happens to be sampled and any profile length works. "vertex" reads one value per vertex, in point order, which is what you want when the widths come from data attached to the vertices — a per-observation weight, a pressure trace. The two coincide only when the vertices are evenly spaced.

Value

A path_grob() in mm units, with rule = "winding", whose fill is the stroked region. Its gp starts from the source grob's stroke colour as a fill, so drawing it looks like the original line.

Details

At constant width the expansion uses the same stroker the rasterizer uses, so the outline is exactly the region that would have been inked, not a reimplementation that could drift from it. A varying width has no such reference — no rasterizer can stroke a line at a changing width — so lwd_profile is served by vellum's own offsetter instead. See Variable width below.

The result is baked at one size. A stroke width is a device quantity, so its outline only exists once a page size and resolution are chosen. Those are arguments here, and the returned coordinates are absolute (mm) — the outline will not rescale with the page the way the original stroke would. That is inherent: an outline is a shape, not a stroke.

Variable width

The region swept by a round nib of varying radius is the union of the convex hulls of successive pairs of end discs, so lwd_profile builds that union rather than offsetting each vertex along its normal. The distinction matters at a taper: an offset boundary would cut into the end disc and the tip would come out waisted rather than pointed.

Three consequences worth knowing:

Width varies linearly between vertices, so a profile is only as smooth as the polyline under it. bezier_grob() and spline_grob() flatten to a polyline before this function sees them, so a profile rides the flattened points — prefer along = "arclength" there, and raise their n if a taper looks faceted.
On a closed polygon_grob() or path_grob() the profile is cyclic: a ring has no first vertex a reader can see, so the values wrap. c(1, 0) on a ring is therefore two tapers, not one.
lwd_profile = NULL is byte-identical to previous versions. A constant profile such as lwd_profile = 1 is not — it goes through the offsetter, so it agrees with tiny-skia's stroker as a picture but not to the last bit. lineend and linejoin are honoured, but only on the outer silhouette; the inner side of a join is the natural overlap either way.

Examples

zig <- lines_grob(c(0.1, 0.35, 0.6, 0.9), c(0.2, 0.8, 0.2, 0.8),
                  gp = vl_gpar(col = "steelblue", lwd = 12))
outline <- stroke_to_path(zig, width = 3, height = 2)
# A width that varies along the line: thick in the middle, tapered at both ends.
leaf <- stroke_to_path(zig, width = 3, height = 2, lwd_profile = c(0.15, 1, 0.15))

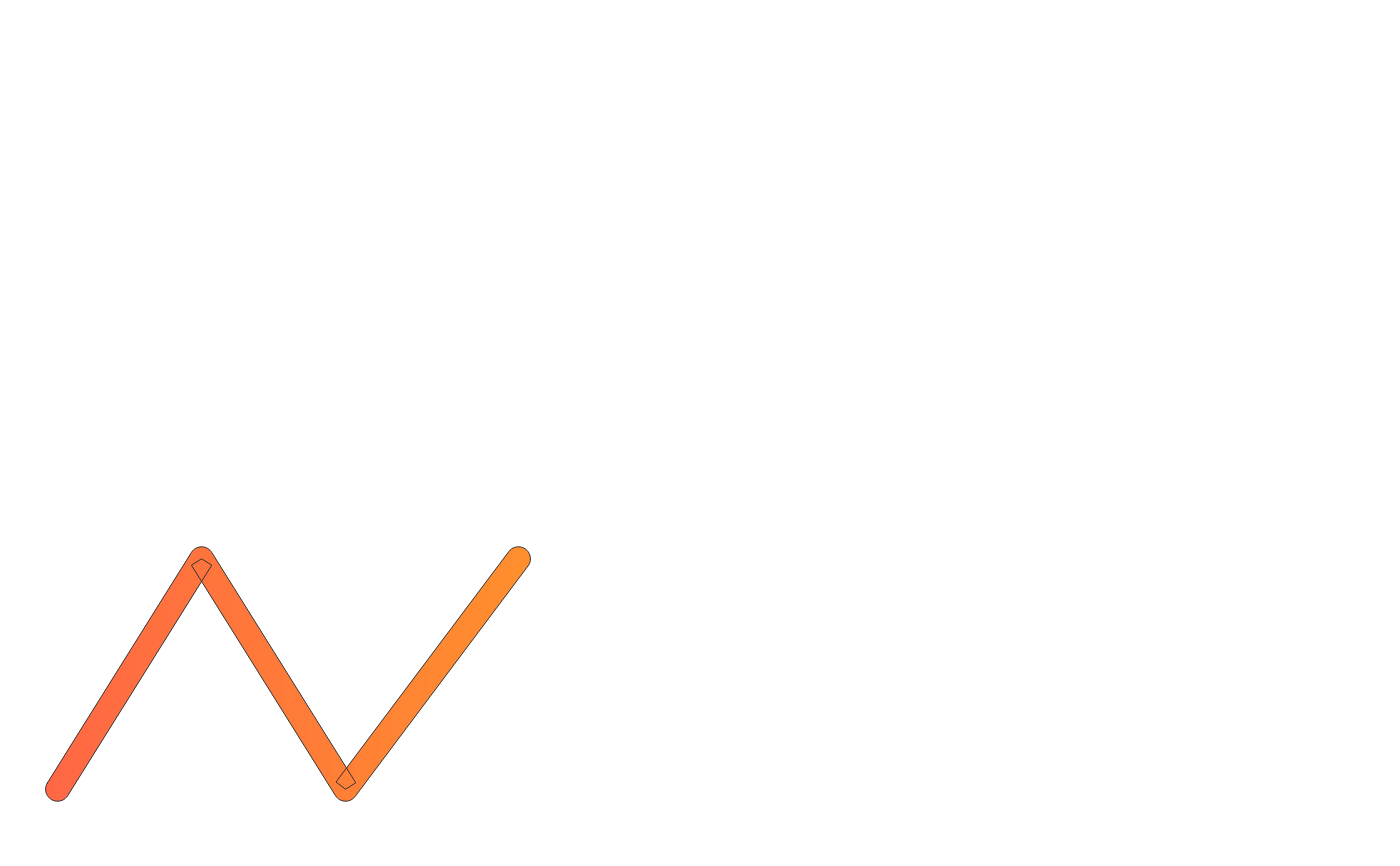

# Now fillable: a gradient across the ribbon the line traced.
vl_scene(3, 2) |>
  draw(S7::set_props(outline, gp = vl_gpar(
    fill = linear_gradient(c("tomato", "gold")), col = "grey20", lwd = 0.5
  )))
