Icons as vector markers

Basics
Images
A point shape can be an SVG icon, a path d string or a .svg file, drawn as crisp vector geometry rather than a raster pasted at every point.

Using icons as plotting symbols in R has usually meant rasterising: one small PNG stamped at every data point, soft at any zoom and useless in print. But an icon set already ships the thing you want, a path d string, and vellum can draw that path directly (vellum::svg_grob()), so shape accepts one.

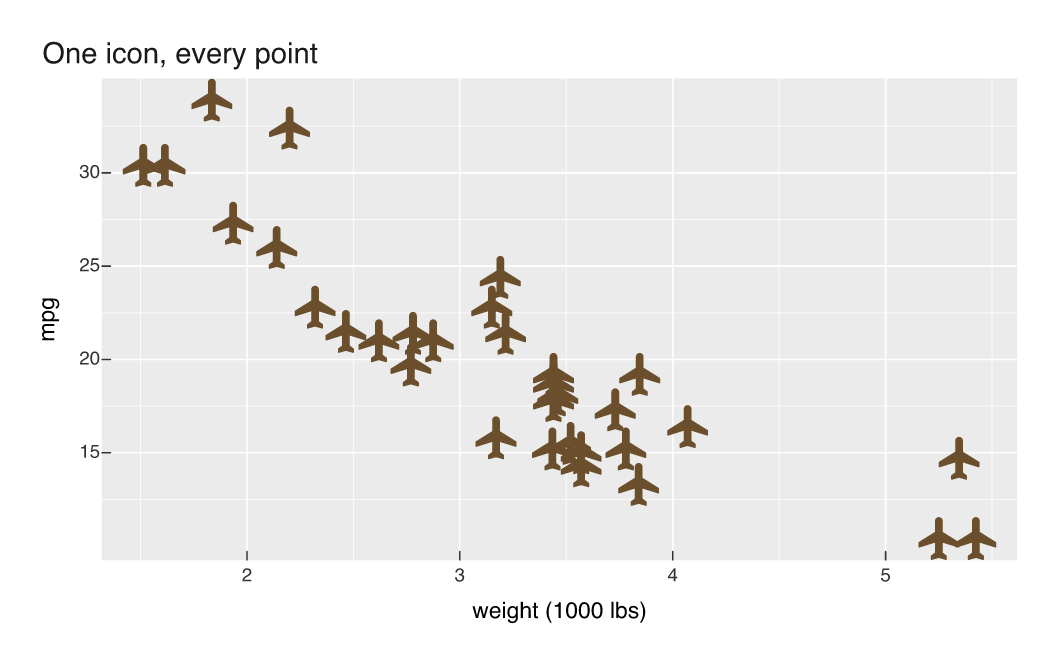

Pass a literal d string for a constant marker:

plane <- paste0(
  "M21 16v-2l-8-5V3.5a1.5 1.5 0 0 0-3 0V9l-8 5v2l8-2.5V19l-2 1.5V22l3.5-1",
  "L15 22v-1.5L13 19v-5.5z"
)

p <- vplot(mtcars, width = 7, height = 4.4) |>
  mark_point(x = wt, y = mpg, shape = !!plane, size = 1.4, color = "#6b4f2c") |>
  labs(title = "One icon, every point", x = "weight (1000 lbs)", y = "mpg")

shape is a tidy-eval channel like any other, so a bare plane would be looked up as a column of the data. Inline the string, or inject the variable with !! as above. size is in millimetres, as it is for the built-in glyphs.

One icon per level

Map shape to a discrete variable and give scale_shape(values = ) one icon per level. The legend draws the icons themselves, and the size aesthetic scales them like any other marker.

star <- "M12 2l3 7h7l-5.5 4.5 2 7-6.5-4.5-6.5 4.5 2-7L2 9h7z"
heart <- paste0(
  "M12 21s-7.5-4.7-9.3-9.1C1.3 8.4 3.3 5 6.7 5c2 0 3.5 1.1 4.3 2.3",
  "H13c.8-1.2 2.3-2.3 4.3-2.3 3.4 0 5.4 3.4 4 6.9C19.5 16.3 12 21 12 21z"
)
bolt <- "M13 2L4.5 13.5H11l-1 8.5L19.5 10H13z"

cars <- data.frame(
  wt = mtcars$wt, mpg = mtcars$mpg,
  cyl = factor(mtcars$cyl, labels = c("4 cyl", "6 cyl", "8 cyl"))
)

p2 <- vplot(cars, width = 7, height = 4.4) |>
  mark_point(x = wt, y = mpg, shape = cyl, color = cyl, size = 1.5) |>
  scale_shape(values = c(star, heart, bolt)) |>
  labs(title = "Three icons, one per level", x = "weight (1000 lbs)", y = "mpg")

A values entry may also be a path to a .svg file, which is the practical route when the icons come from a downloaded set rather than pasted inline. Built-in glyph names ("circle", "square", "triangle", "diamond", "plus", "cross", "triangle_down", "star") still work, and can be mixed with SVG values in the same scale.

Because the marker is geometry, it survives everything geometry survives: zoom into the SVG and the edges stay sharp, and the PDF carries paths rather than an embedded bitmap per point. One gap to know about: per-icon interactivity is not wired up yet, so data_id on an SVG-marker layer does not give you a hoverable icon. The icons render on every backend; they are not yet pickable in a widget.
